Extended Data Fig. 6: TEM data on Na carbonate.
From: An evaporite sequence from ancient brine recorded in Bennu samples

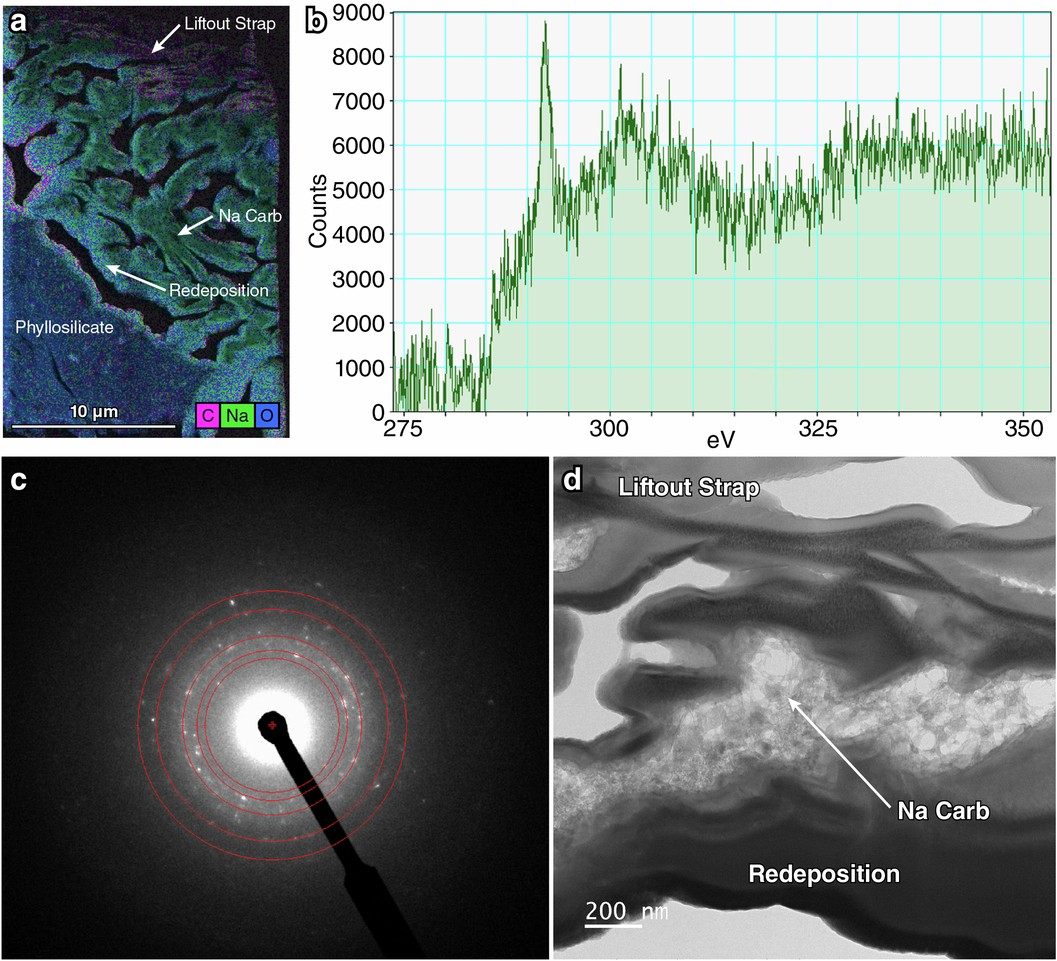

(a) EDS map of FIB liftout section. Na carbonate is rimmed by redeposited material from the FIB sectioning. (b) EELS spectrum of Na carbonate in (d). The sharp peak at ~290 eV in the carbon K edge is consistent with the presence of carbonate groups. (c) Selected area diffraction pattern of Na carbonate in Fig. 4d with lines indexed by radial integration of the scattering. The pattern largely consists of spots and short arcs due to the nanocrystalline nature of the material. (d) Bright-field TEM imaging showing spongy, lacy Na carbonate rimmed by material redeposited during preparation of the FIB section and capped by carbon from the liftout strip from FIB sectioning.
