Extended Data Fig. 4: QC metrics for clustering of excitatory and inhibitory cells. | Nature

Extended Data Fig. 4: QC metrics for clustering of excitatory and inhibitory cells.

From: Transcriptomic neuron types vary topographically in function and morphology

Extended Data Fig. 4

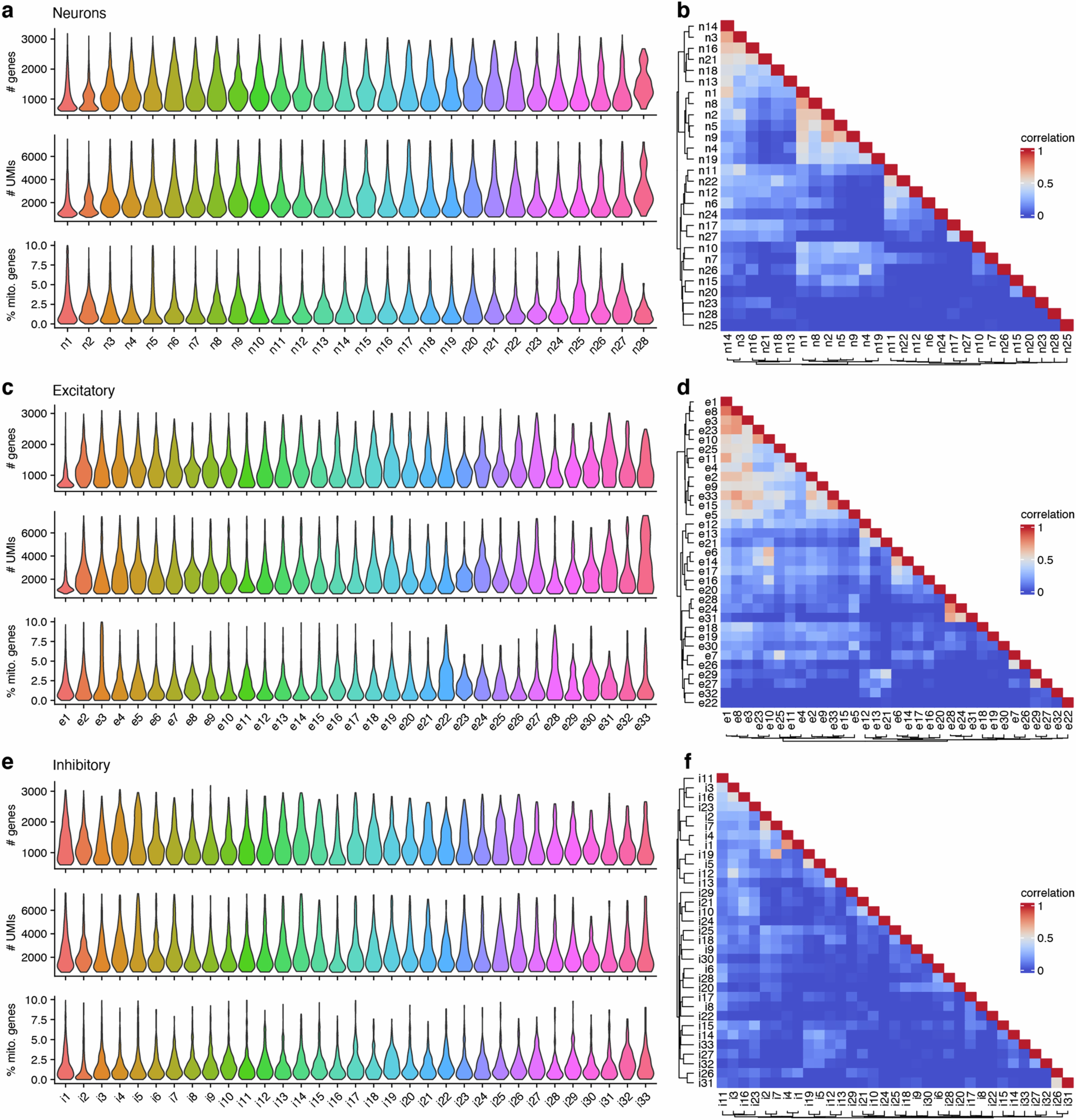

a, Distribution of gene count, UMI count and percentage of mitochondrial genes per neuronal cluster. b, The similarity between neuronal clusters was assessed by correlating the specificity scores of the top markers associated with that cluster (see Methods). c, Same as a, per excitatory cluster. d, Same as b, for the excitatory clusters. e, Same as a per inhibitory cluster. f, Same as b, for the inhibitory clusters.
