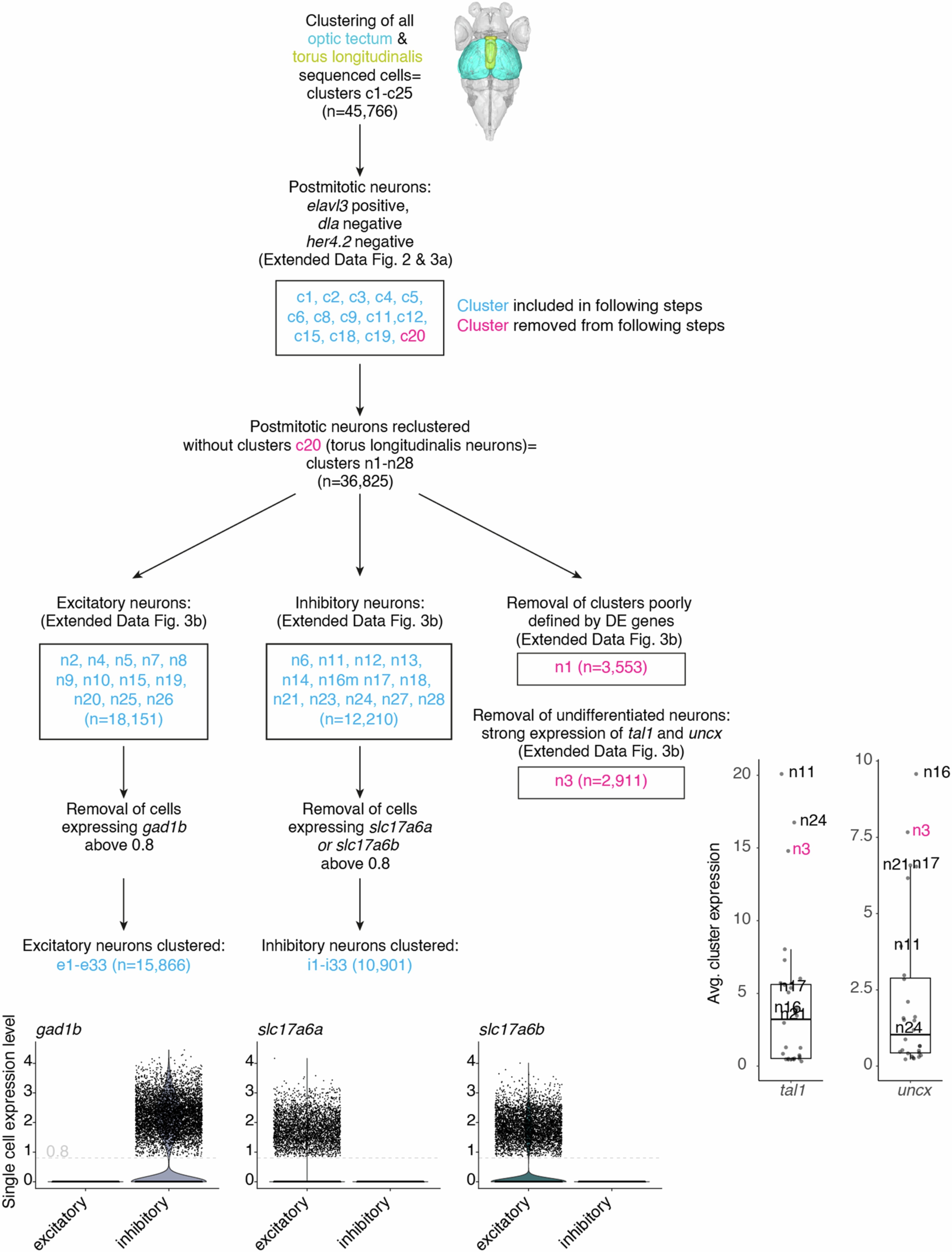

Extended Data Fig. 5: Summary of scRNA-seq clustering steps.
From: Transcriptomic neuron types vary topographically in function and morphology
Average cluster expression box plot includes all cluster points. The lower and upper hinges represent the first and third quartiles, respectively. Whiskers extend to the largest and smallest values within 1.5 × IQR from each hinge.
