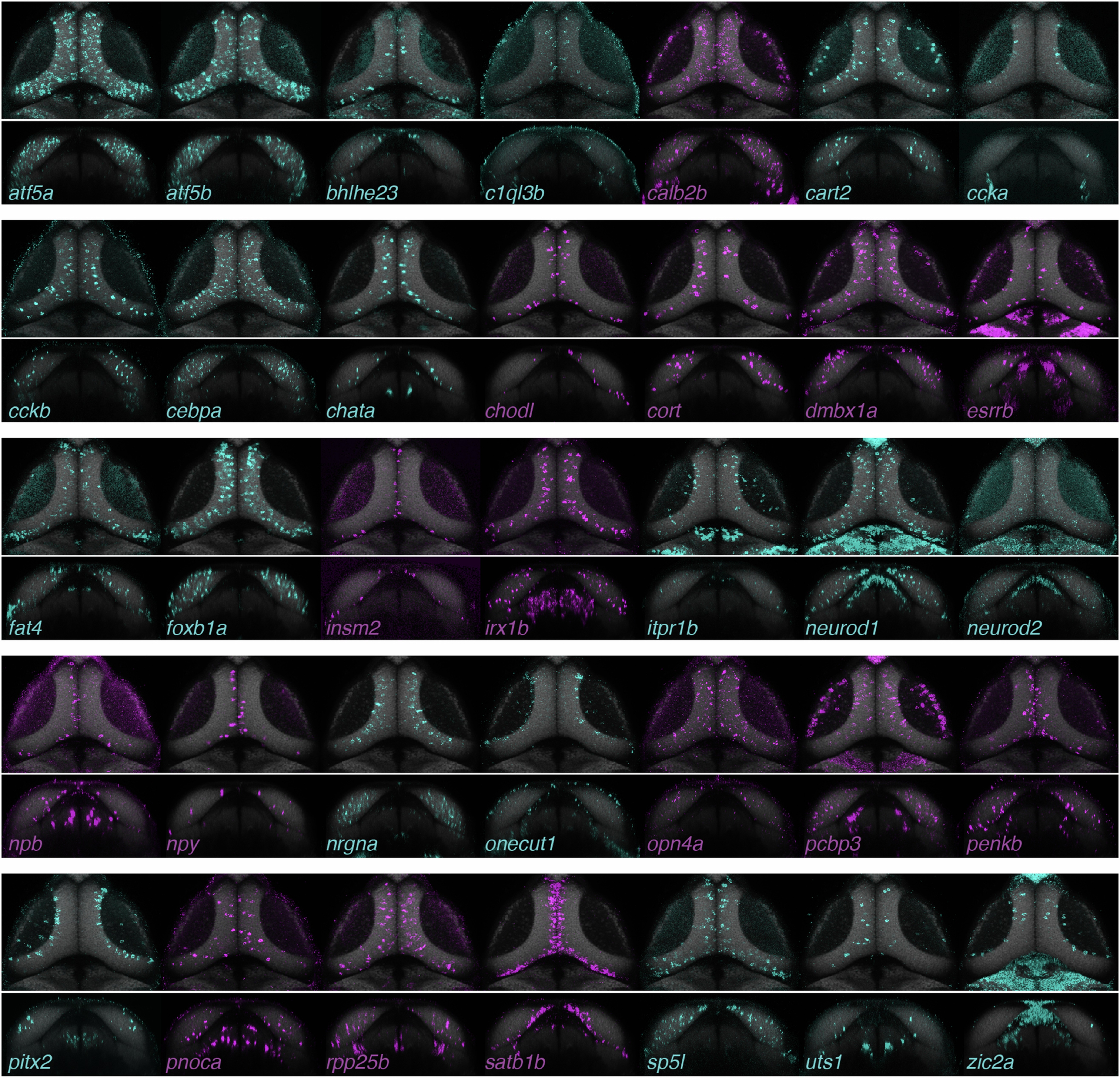

Extended Data Fig. 7: Expression patterns of marker genes.
From: Transcriptomic neuron types vary topographically in function and morphology
Registered in situ HCR data for the examined cell type markers. Projection of transverse planes z289-z291 and coronal planes x463-x465 of a single animal for each gene. Excitatory markers are shown in cyan; inhibitory markers are shown in magenta. All the data can be viewed and downloaded at mapzebrain.org28.
