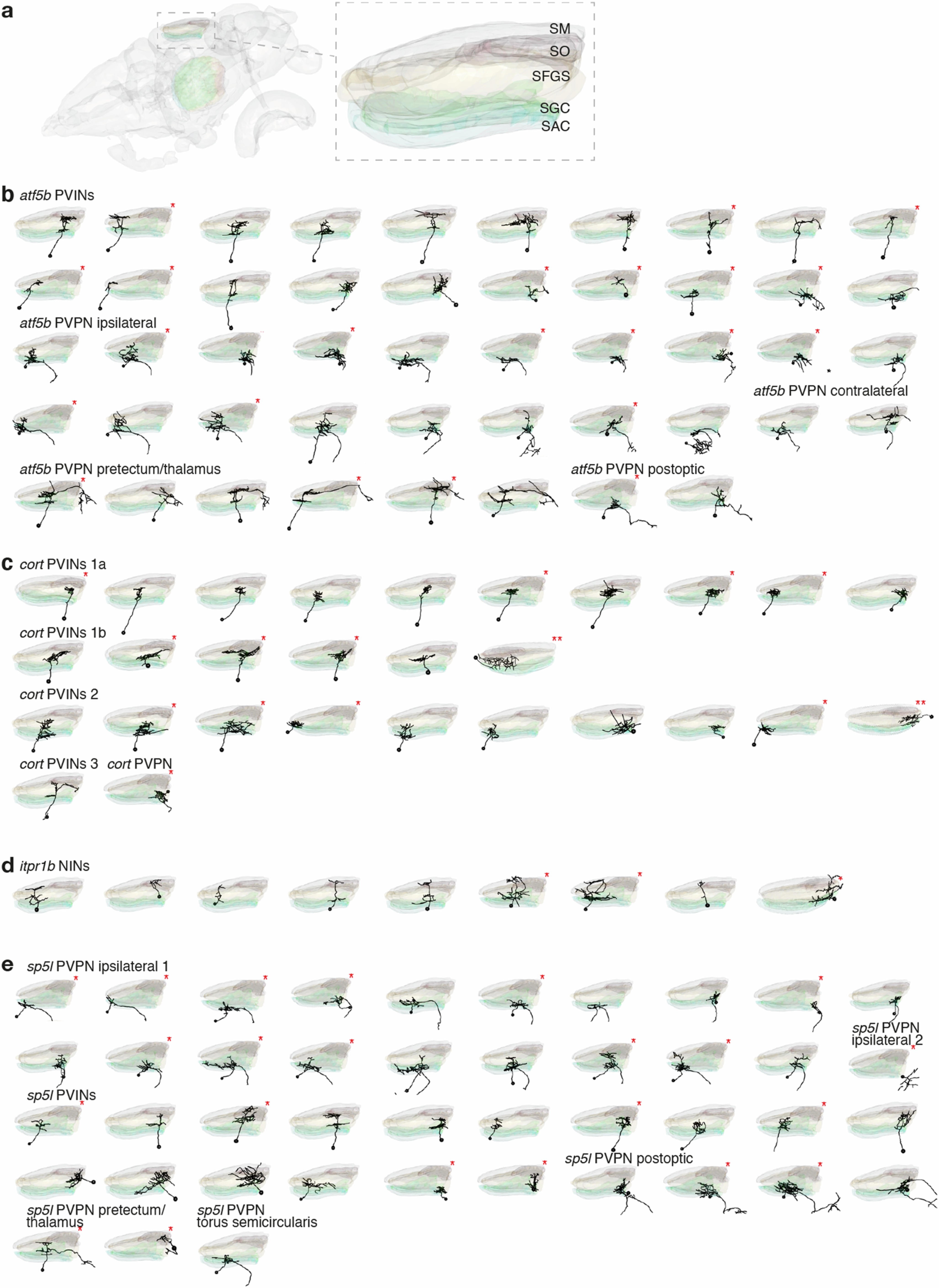

Extended Data Fig. 13: Variation of neuropil stratification patterns within t-types and m-types.
From: Transcriptomic neuron types vary topographically in function and morphology
a, Illustration of the larval zebrafish brain, highlighting the tectal neuropil layers. Abbreviations: SAC; stratum album centrale, SFGS; stratum griseum et fibrosum superficiale, SGC; stratum griseum centrale, SM; stratum marginale, SO; stratum opticum. b–e, Stratification patterns within the tectal neuropil of selected m-types, for each of the t-types examined. Axonal patterns of the projection neurons can be visualized in Fig. 6a–d and using mapzebrain.org brain atlas. *Right hemisphere located neurons, whose images were mirrored for visualization simplicity. **Lateral and not medial viewing angle.
