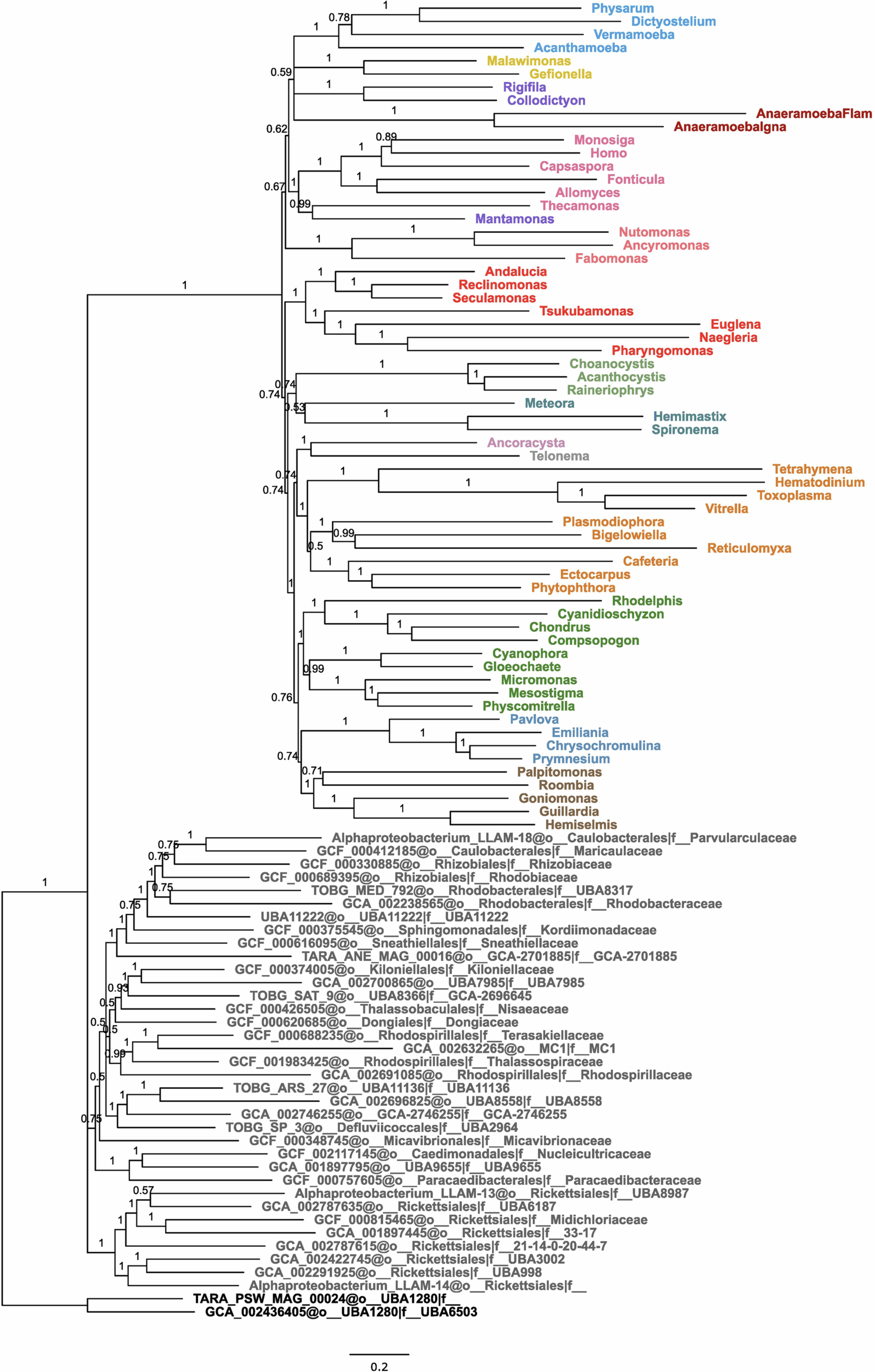

Extended Data Fig. 2: Bayesian consensus tree estimated from Anae+ dataset.
From: A robustly rooted tree of eukaryotes reveals their excavate ancestry
Consensus phylogeny estimated under the CAT + GTR model in PhyloBayes from 4 chains after 29,000 cycles, with a burn-in of 1000. Posterior probabilities for each bipartition are indicated. Note that these 4 chains included one in which Hemimastigophora branched on the opposite side of the root, separate from its previously inferred close relative Meteora, with this non-convergence resulting in posterior probabilities ~0.75 (0.74) for several deep nodes in the Diphoda+ side of the tree.
