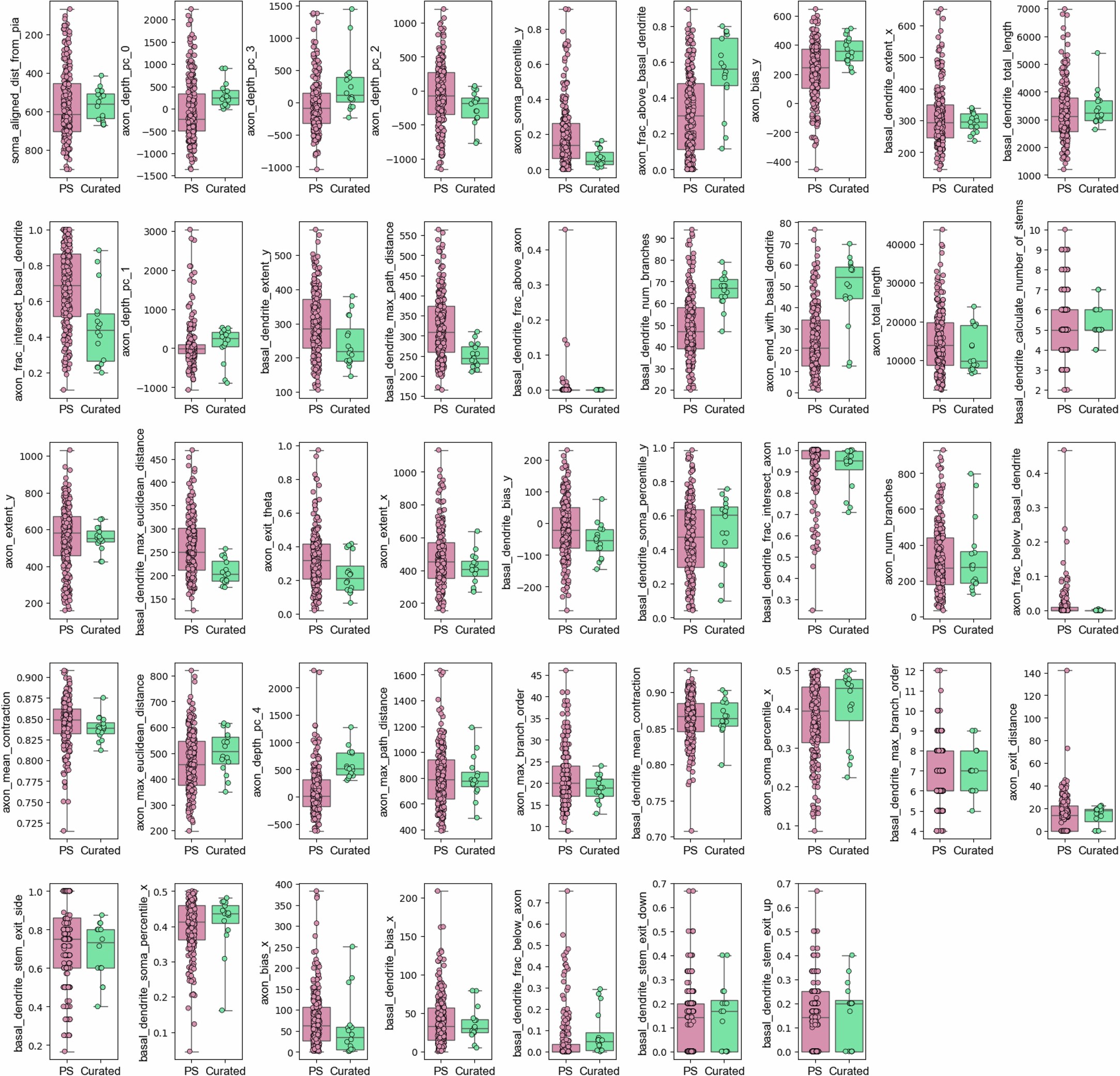

Extended Data Fig. 3: Comparison of features of Sst Patch-seq versus EM Martinotti.
From: Connectomics of predicted Sst transcriptomic types in mouse visual cortex
Features plotted in order of decreasing gini index of features of Sst Patch-seq (n = 236) versus EM Martinotti cells (curated EM n = 16) features. Boxplot whiskers indicate the range (max/min) of the data. We see for all but one EM cell for one feature (axon_depth_pc_3) the values from EM fall within the range observed for Patch-seq data. We expect these values to not be the same as the Patch-seq data contains all Sst MET-types, whereas the curated EM cells are only a subset of Martinotti cells.
