Extended Data Fig. 9: Analysis in Fig. 3 repeated with in silico orientation preference.

From: Functional connectomics reveals general wiring rule in mouse visual cortex

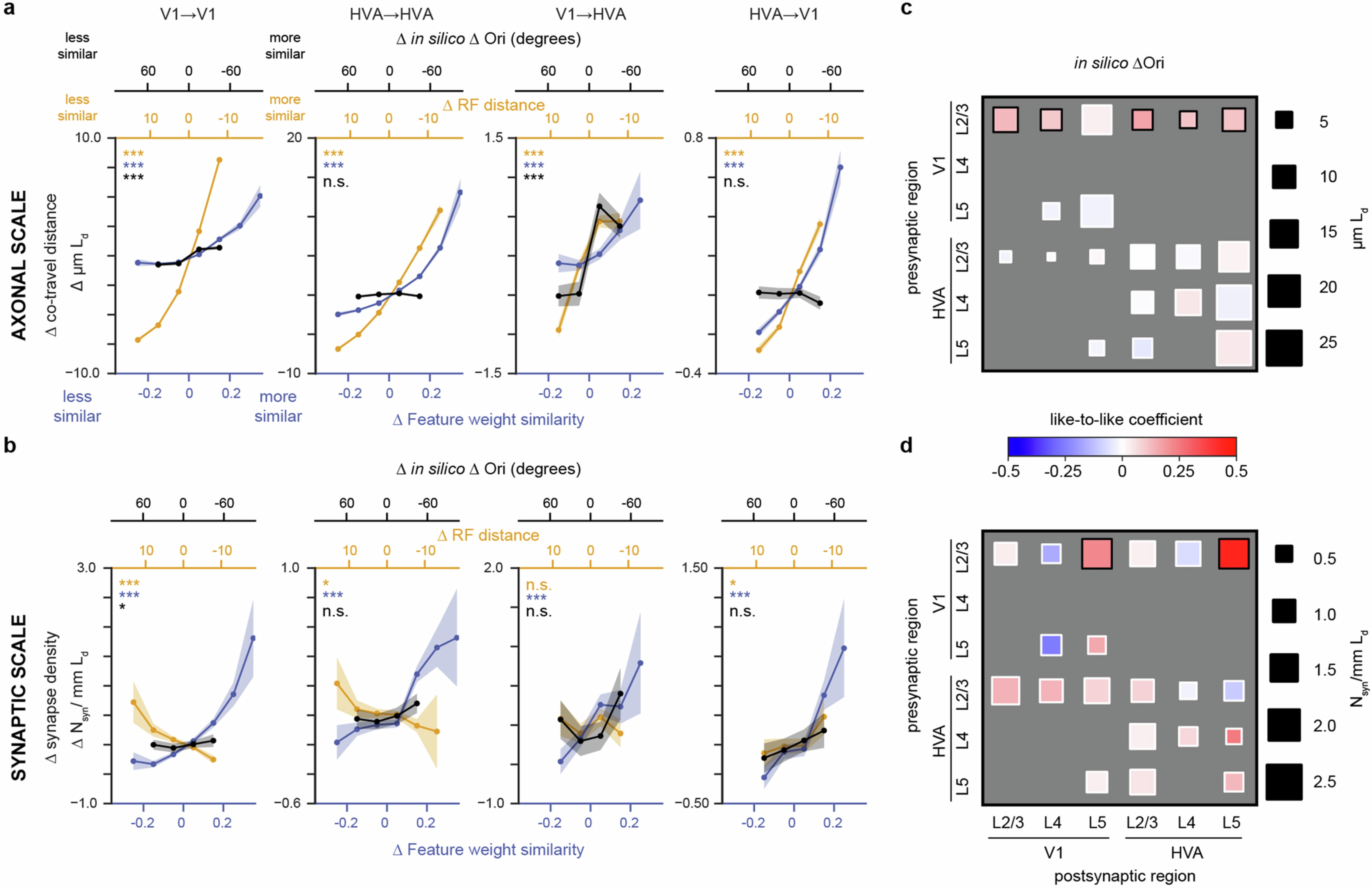

Extended Data Fig. 9: Analysis in Fig. 3 repeated with in silico orientation preference.The alternative text for this image may have been generated using AI.

a, Difference in preferred orientation (Δ Ori) derived from in silico responses to parametric stimuli for tuned (gOSI > 0.25) neurons along with both feature weight similarity and receptive field center distance (reproduced from Fig. 3) at axonal scale. b, same as in a, at synaptic scale. For analysis with synapse size, see Extended Data Fig. 13) c, Area/layer joint membership breakout as in Fig. 4 for in silico Δ ori at axonal scale. d, As in c but at synaptic scale. All analyses are centered per presyn by accounting for the presyn mean (e.g. Δ feature weight similarity). For statistics and sample sizes, see Supplementary Tables 7–14, 29–34.
