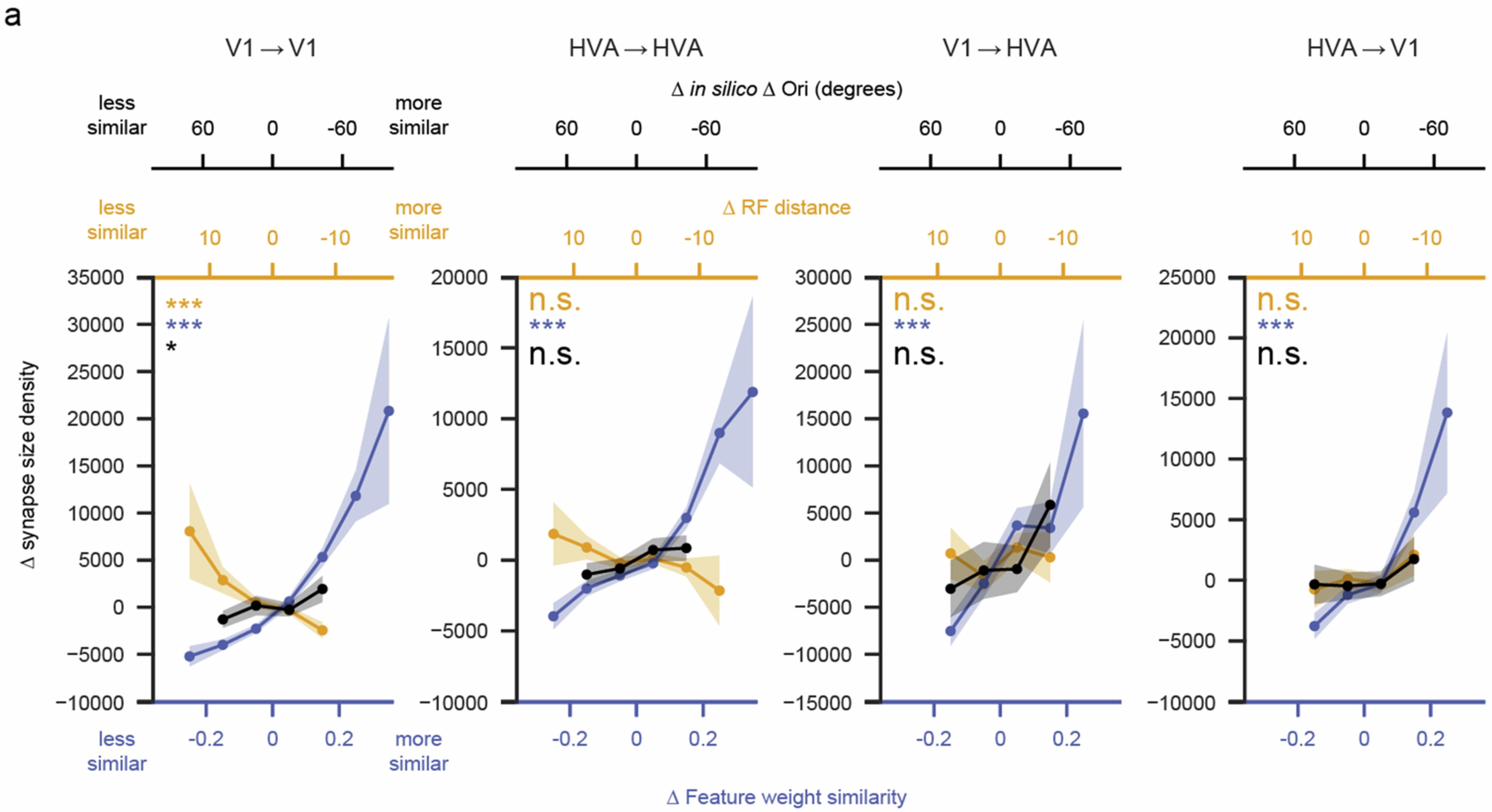

Extended Data Fig. 13: In silico Δ Ori, RF location similarity, and feature weight similarity vs synapse size density.
From: Functional connectomics reveals general wiring rule in mouse visual cortex
a, Analysis in Extended Data Fig. 9a,b repeated with synapse size density, rather than synapse density. Synapse size density is computed similarly to synapse density except that the numerator Nsyn is replaced with the summed synaptic weight (sum of all synapse cleft volumes for a pair of neurons in 4 × 4 × 40 nm3 voxels).
