Extended Data Fig. 4: RMSD between primed and postPS actomyosin structures.
From: Swinging lever mechanism of myosin directly shown by time-resolved cryo-EM

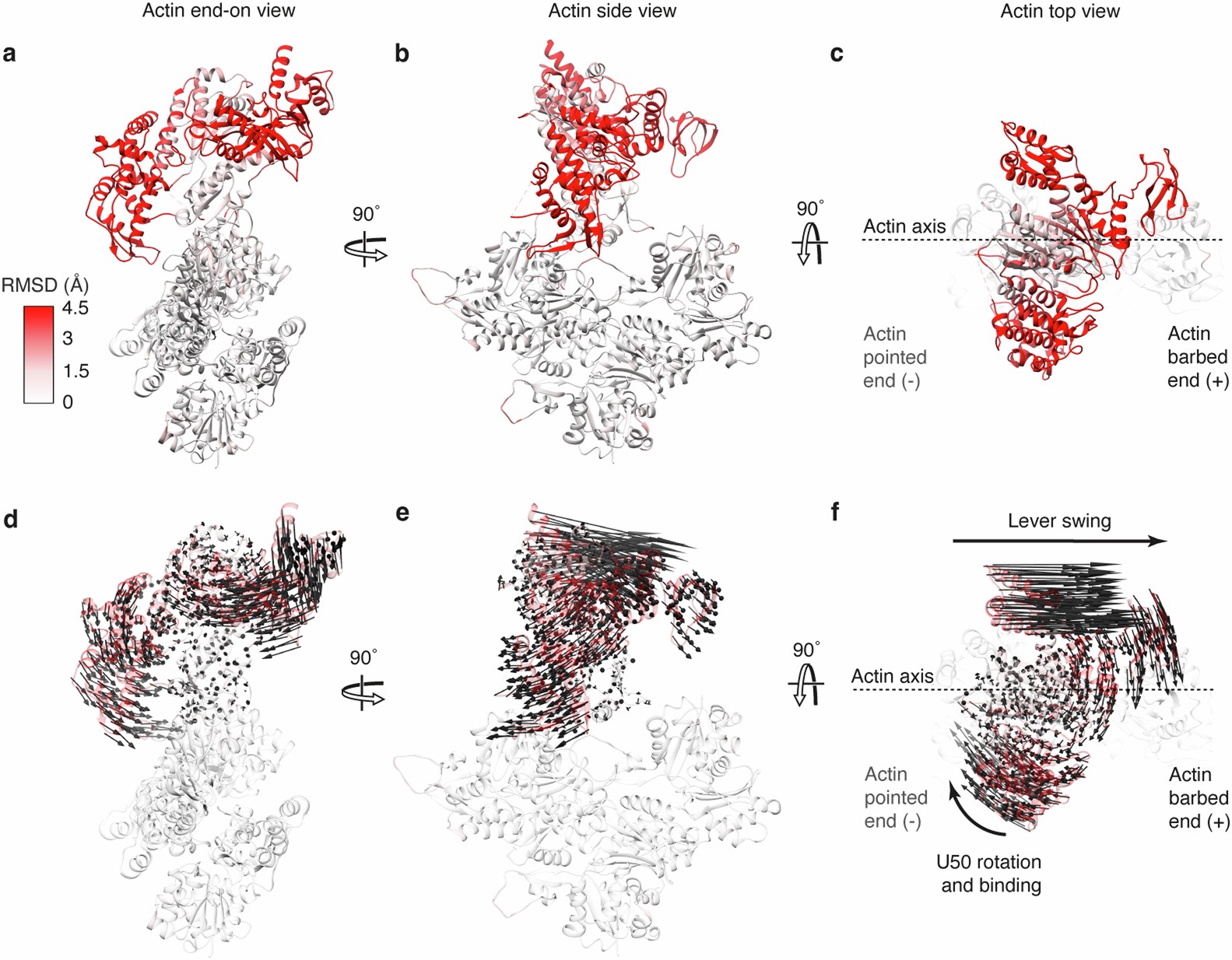

a–c, Primed actomyosin PDB coloured by RMSD between primed and postPS actomyosin shown in a, end-on view of F-actin, looking towards the pointed end with myosin bound to the top of the actin; b, side view; c, top view, looking down over the motor domain. d–f, The same views as a–c respectively, but with vector arrows (in black) showing displacement in relative Cα positions between primed and postPS actomyosin motor domains.
