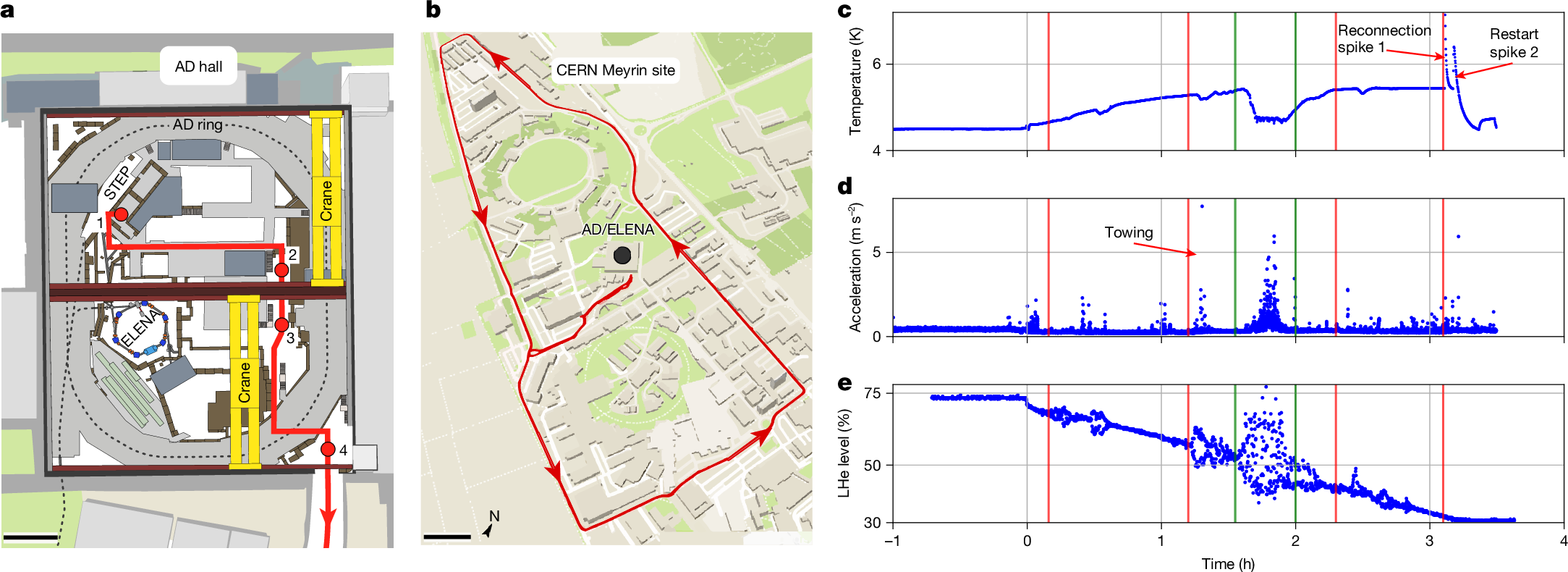

Fig. 2: Transport route and sensor data.
a, The route for the first transport demonstration through the AMF hall. Point 1 is the experiment zone from which an overhead crane moved the transport frame to point 2; at point 2, the transport frame was loaded onto a trailer and moved to point 3, where it then got picked up by the second overhead crane. Point 4 is the loading bay with the truck. b, Road map of the Meyrin site of CERN and the GPS position data recorded during transportation. Map reproduced from https://www.openstreetmaps.org. c–e, Magnet temperature (c), total acceleration (d) and liquid helium level (e) measured during transport. The zero on the horizontal axis marks the shutdown time of the pulse-tube cooler. For details, see the text and the Methods. The green bars enclose the time interval corresponding to the truck transport of the trap. The red bars indicate the start and stop times of the crane transportation.
