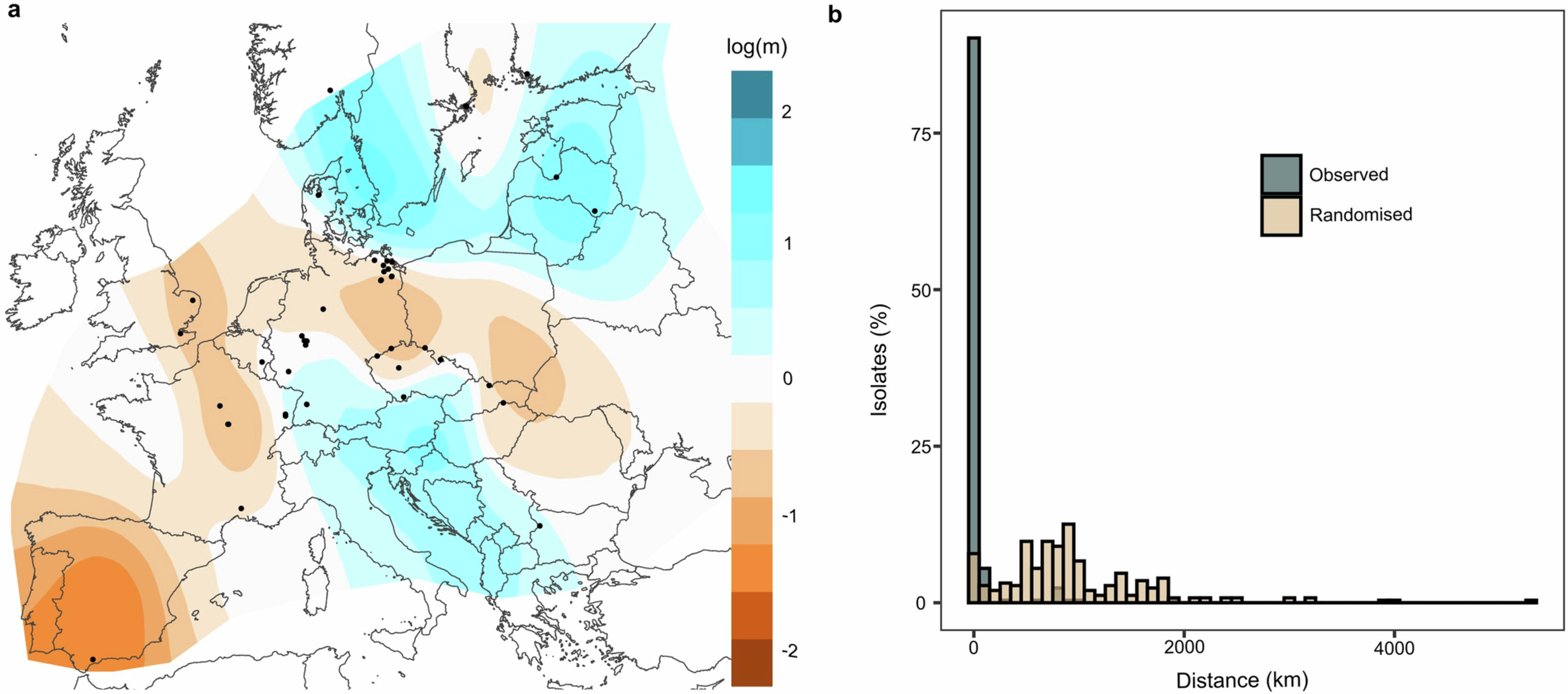

Extended Data Fig. 9: Population differentiation in Pd-2.
From: Two distinct host-specialized fungal species cause white-nose disease in bats
a, Estimation of effective migration surfaces based on 107 isolates from Pd-2 in Europe (all sites excluding Russia after clone correction). For visualization, results from eight independent runs (each with 8 million iterations and between 100 and 450 demes), were combined. Different shades of a colour represent variable levels of high (blue) or low (brown) effective migration rates. Sampling locations are represented by black dots. b, Distribution of distance between true and assigned site of each isolate (n = 279) for the observed and randomized datasets (binwidth = 100 km). The mean distance of assignment was 42.88 km with a median of 0 km. In the Null-DAPC with randomization of sites before assignment, the mean and median were 913.68 km and 774.05 km, respectively.
