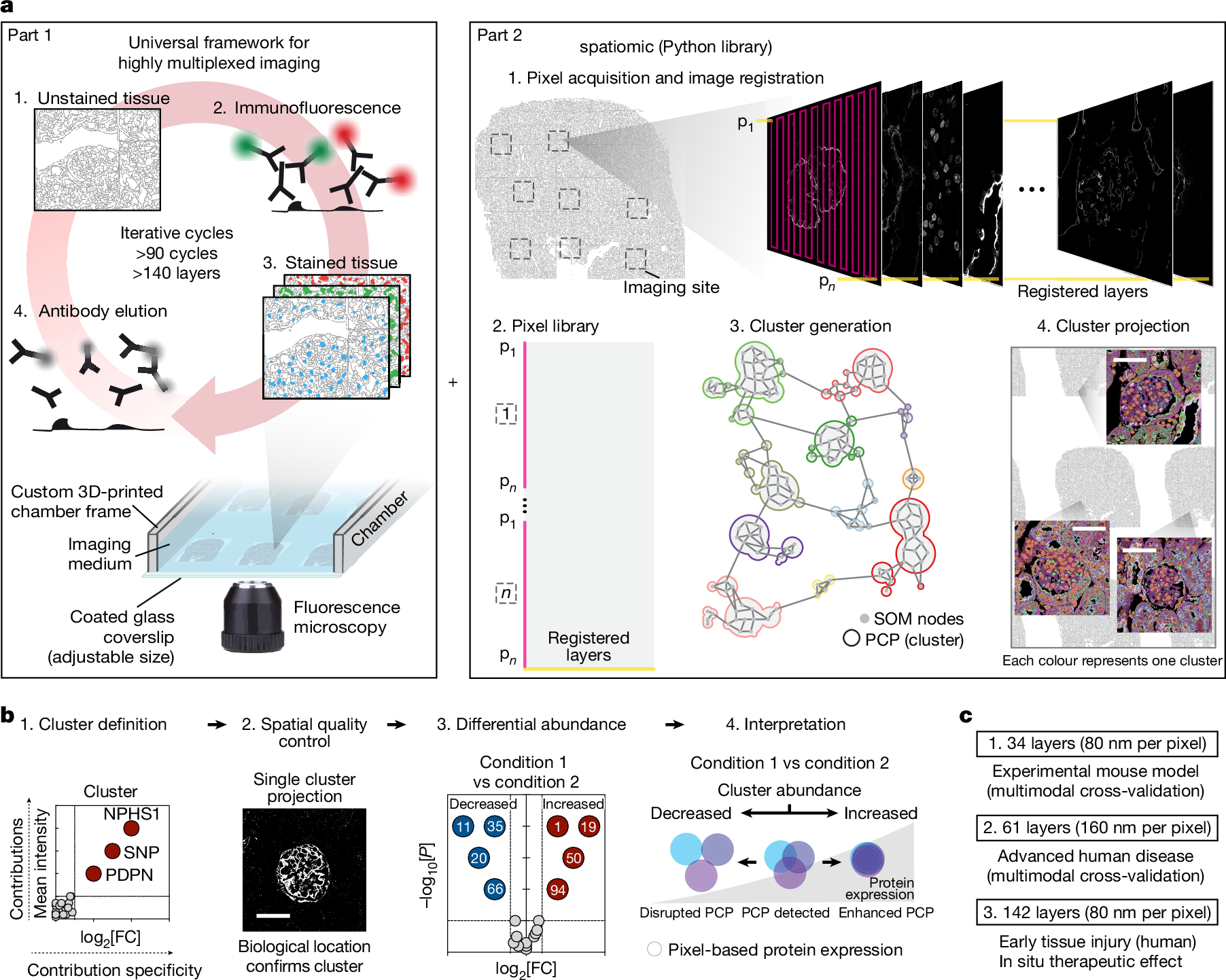

Fig. 1: PathoPlex.
From: Pathology-oriented multiplexing enables integrative disease mapping
a, PathoPlex represents a combination between a universal framework for highly multiplexed imaging in pathological tissues (left) and a Python library (spatiomic) to analyse protein co-expression patterns (PCPs) or clusters (right). b, Step-by-step interpretation of generated clusters. c, Summary of all experimental datasets in this study. Scale bars, 50 μm. FC, fold change; p, pixel.
