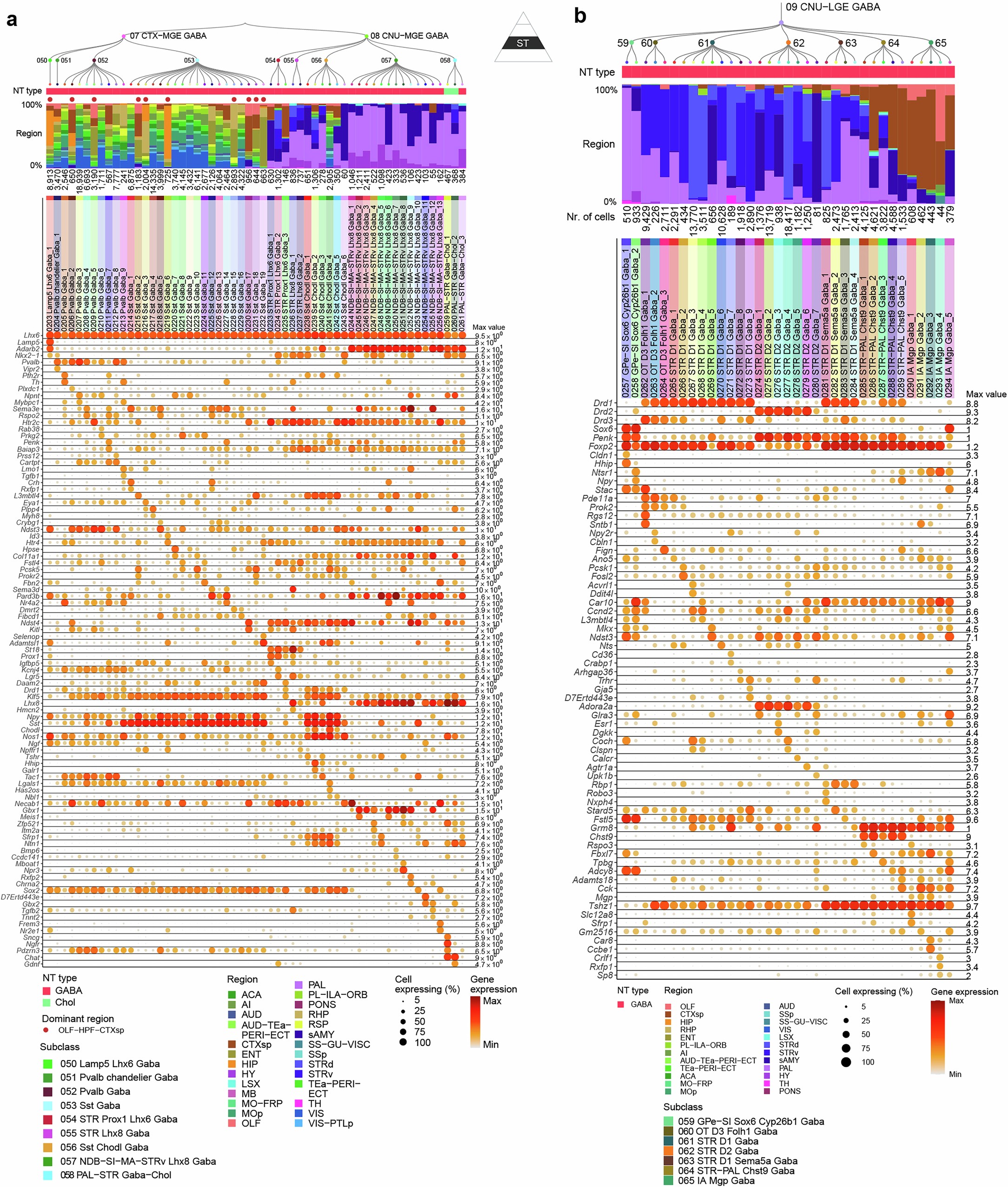

Extended Data Fig. 6: Subclass and supertype marker genes within CTX-MGE, CNU-MGE, and CNU-LGE GABAergic neuronal types.
From: Transcriptomic and spatial organization of telencephalic GABAergic neurons
(a-b) Dendrogram of MGE (a) and CNU-LGE (b) supertypes followed by bar graphs showing major neurotransmitter type, region distribution of profiled cells, dominant region, and number of cells within supertype, followed by dot plot showing marker gene expression in each supertype from the 10xv3 dataset. The dominant region was assigned if more than 70% of cells are from the OLF-HPF-CTXsp regions. For the gene expression dot plot, dot size and colour indicate proportion of expressing cells and average expression level in each supertype, respectively. Triangular schematic denotes the most granular hierarchical level shown in the panel (ST: supertype).
