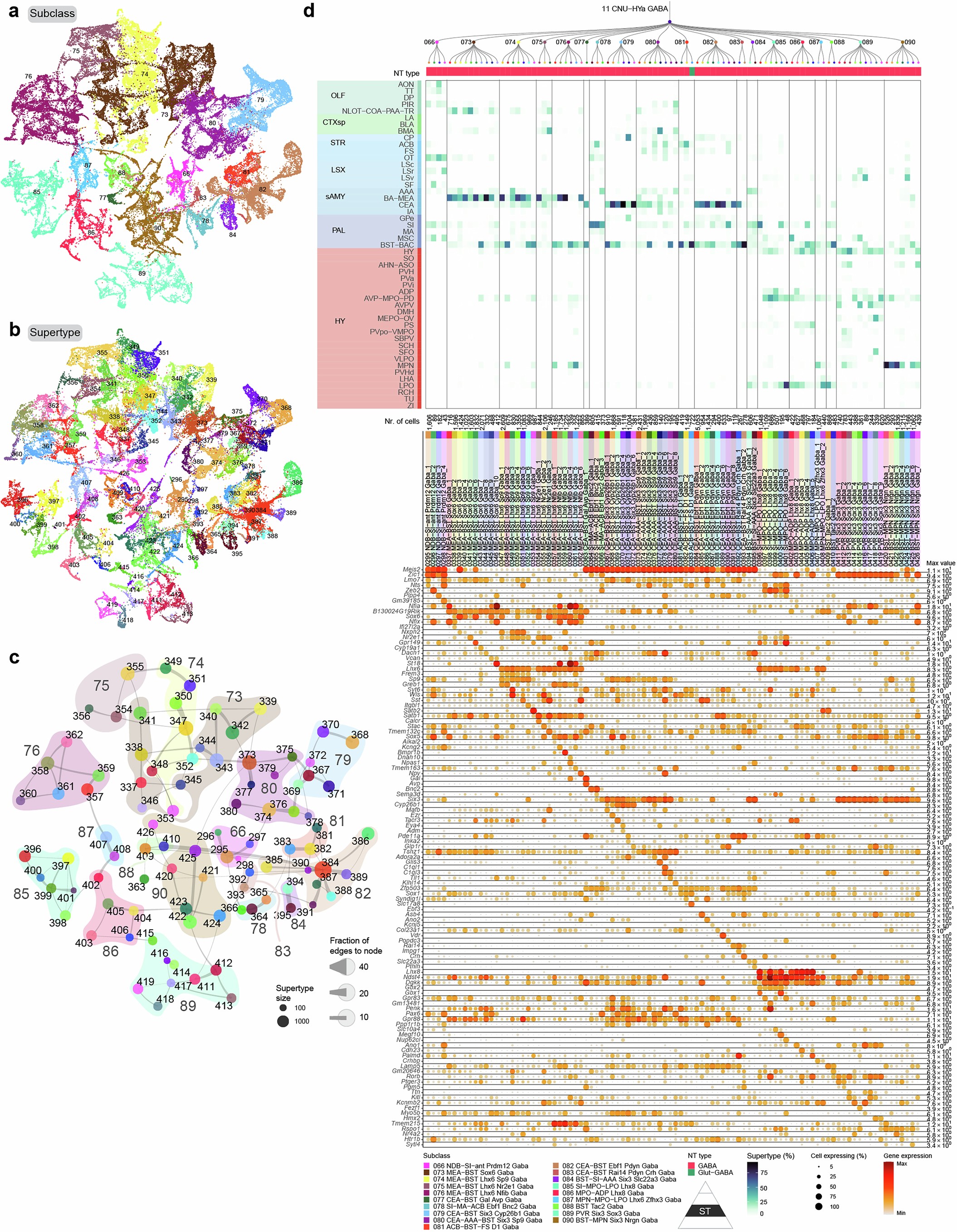

Extended Data Fig. 9: GABAergic cell types of the CNU and anterior hypothalamus (HYa).
From: Transcriptomic and spatial organization of telencephalic GABAergic neurons
(a-b) UMAP representation of all cells in the CNU-HYa GABA class coloured and labelled by subclass (a) or supertype (b). (c) Constellation plot of CNU-HYa supertypes using UMAP coordinates shown in b. Nodes are coloured by supertype and grouped in bubbles by subclass. (d) Dendrogram of CNU-HYa supertypes followed by tiles showing major neurotransmitter type, followed by a heatmap showing the region distribution of profiled cells, then followed by dot plot showing marker gene expression in each supertype from the 10xv3 dataset. Dot size and colour indicate proportion of expressing cells and average expression level in each supertype, respectively. Triangular schematic denotes the most granular hierarchical level shown in the panels (ST: supertype).
