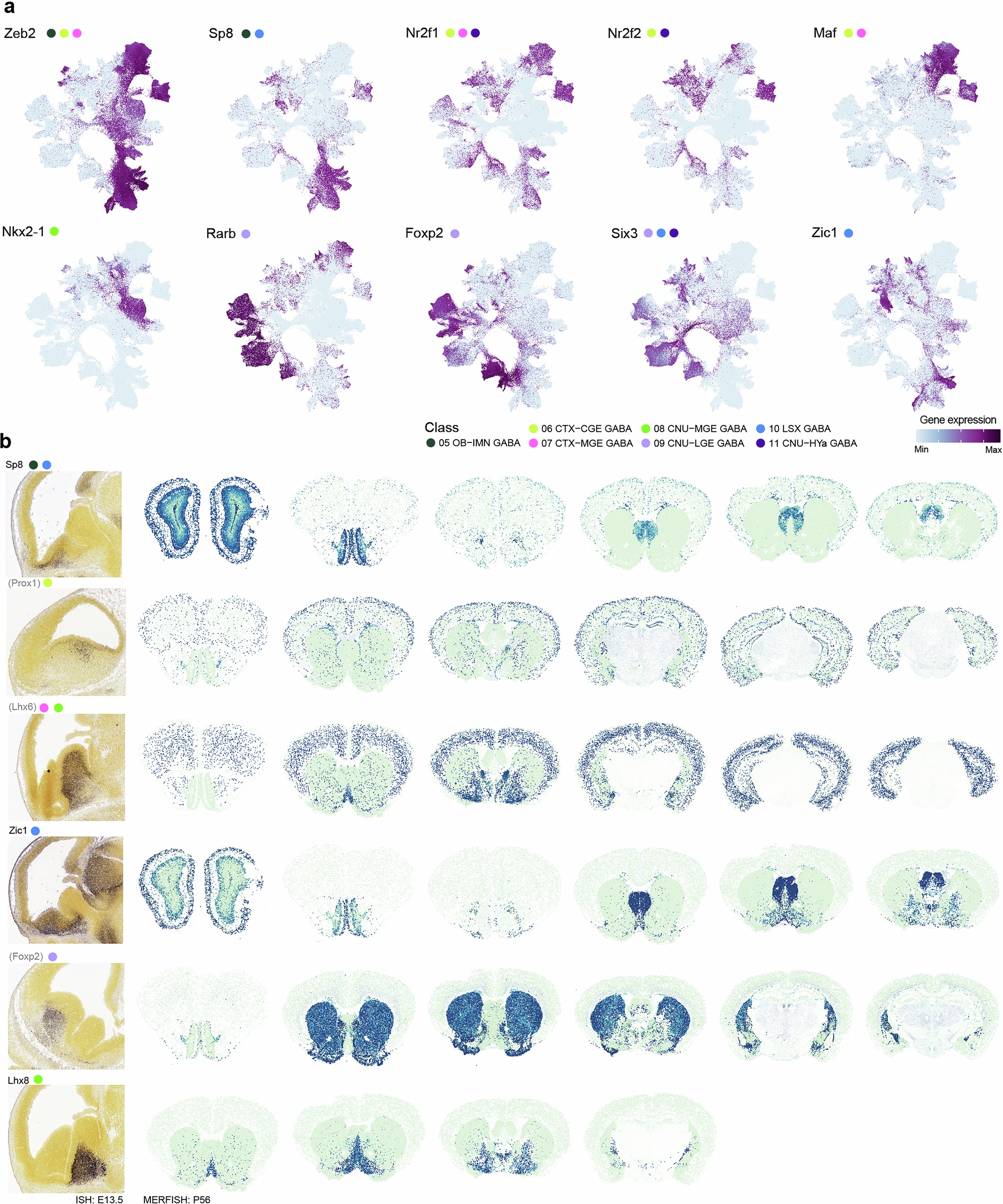

Extended Data Fig. 15: Transcription factor expression marking developmental lineages.
From: Transcriptomic and spatial organization of telencephalic GABAergic neurons
(a) UMAP representation of all cells across embryonic to P56 timepoints coloured by expression level of major lineage marker genes. The coloured dots next to each gene name show the adult cell classes that express that gene. (b) Representative developmental ISH (E13.5) and adult MERFISH sections showing expression of key TFs in GABAergic neurons. Genes marked with parentheses indicate imputed spatial gene expression pattern on MERFISH sections (see Methods).
