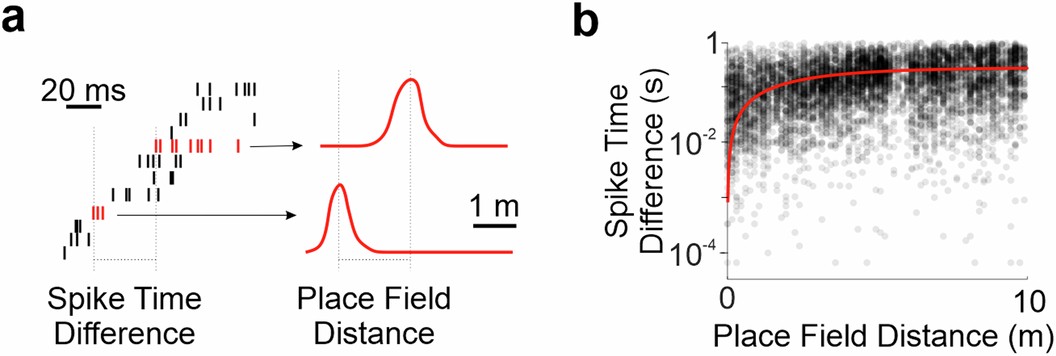

Extended Data Fig. 7: Distance between place fields versus timing between spikes during replay.
From: Replay and representation dynamics in the hippocampus of freely flying bats
a, Schematic showing the interval between first spikes and the distance between place fields for a specific neuron pair participating in a replay event. b, Interval between first spikes versus distance between place fields for all the place-cell pairs that participated in replay events fulfilling analysis criteria (8,328 valid pairs from 1,073 replays; Methods). Note that at short distances the time between first spikes increases with the distance between place fields, but this increase plateaus at distances of a few metres, in line with the approximate constancy of replay duration across varying lengths.
