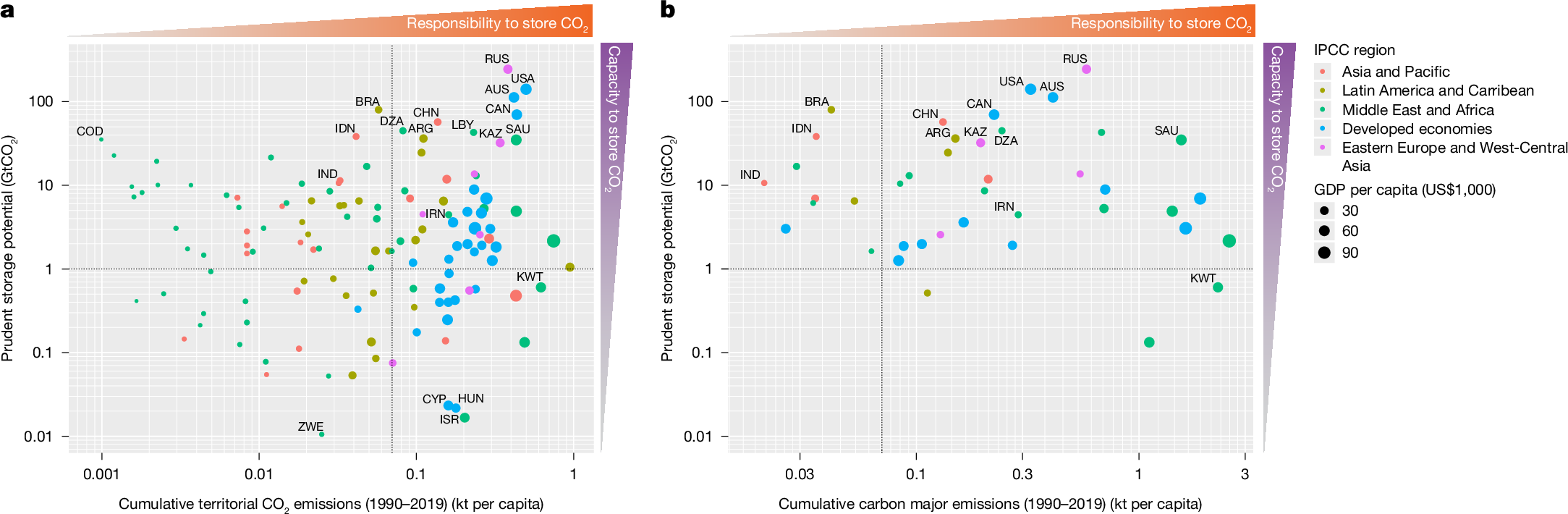

Fig. 4: Prudent carbon-storage potential is unequally distributed among countries.

a, The relationship between responsibility for historical emissions (x axis)⁶⁶ and the remaining storage potential (y axis) is shown, with the size of each point in the scatter plot being proportional to per capita gross domestic product (GDP). Countries in the top-right quadrant of the plot have relatively high historical responsibility for current warming levels and relatively high amounts of carbon storage available to support high-durability carbon removal, which in principle would lead to reducing future responsibility. Countries in the bottom-right quadrant have high responsibility, but limited capacity to store carbon domestically based on our analysis, implying the need to transport carbon elsewhere. Countries in the top-left quadrant have low responsibility but high remaining storage potential, and thus could in principle provide storage for appropriate financial transfers to countries without available resources under the Paris Agreement’s principle of common-but-differentiated responsibilities and respective capabilities to arrive at fairer outcomes aligned with its long-term temperature goal. Individual three-letter country codes are provided in Supplementary Table 5. b, The same plot as in a but using the emissions embedded in extracted fossil fuels by industrial carbon majors (https://carbonmajors.org/Downloads), showing which nations have the highest responsibility for historical fossil-fuel extraction—and thus who has reaped the largest revenues from sale of fossil resources—rather than territorial emissions.
