Extended Data Fig. 5: MPR change during fusion.

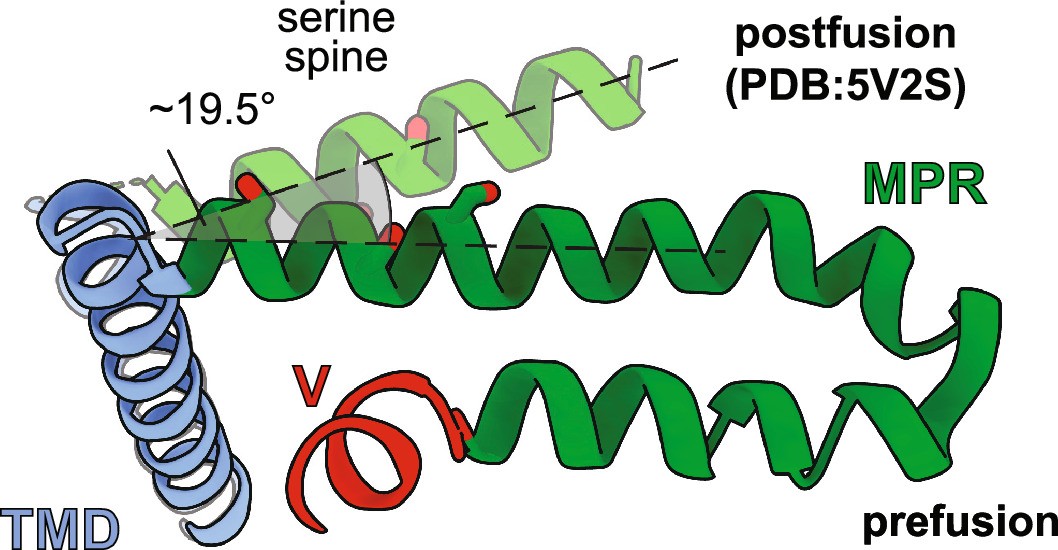

Overlay of ribbon renderings of the MPR and TMD helices of the pre- and postfusion (half transparent PDB: 5V2S)³, aligned to the TMD showing the indicated angle. The residues of the serine spine are shown in sticks with oxygen atoms shown in red.
