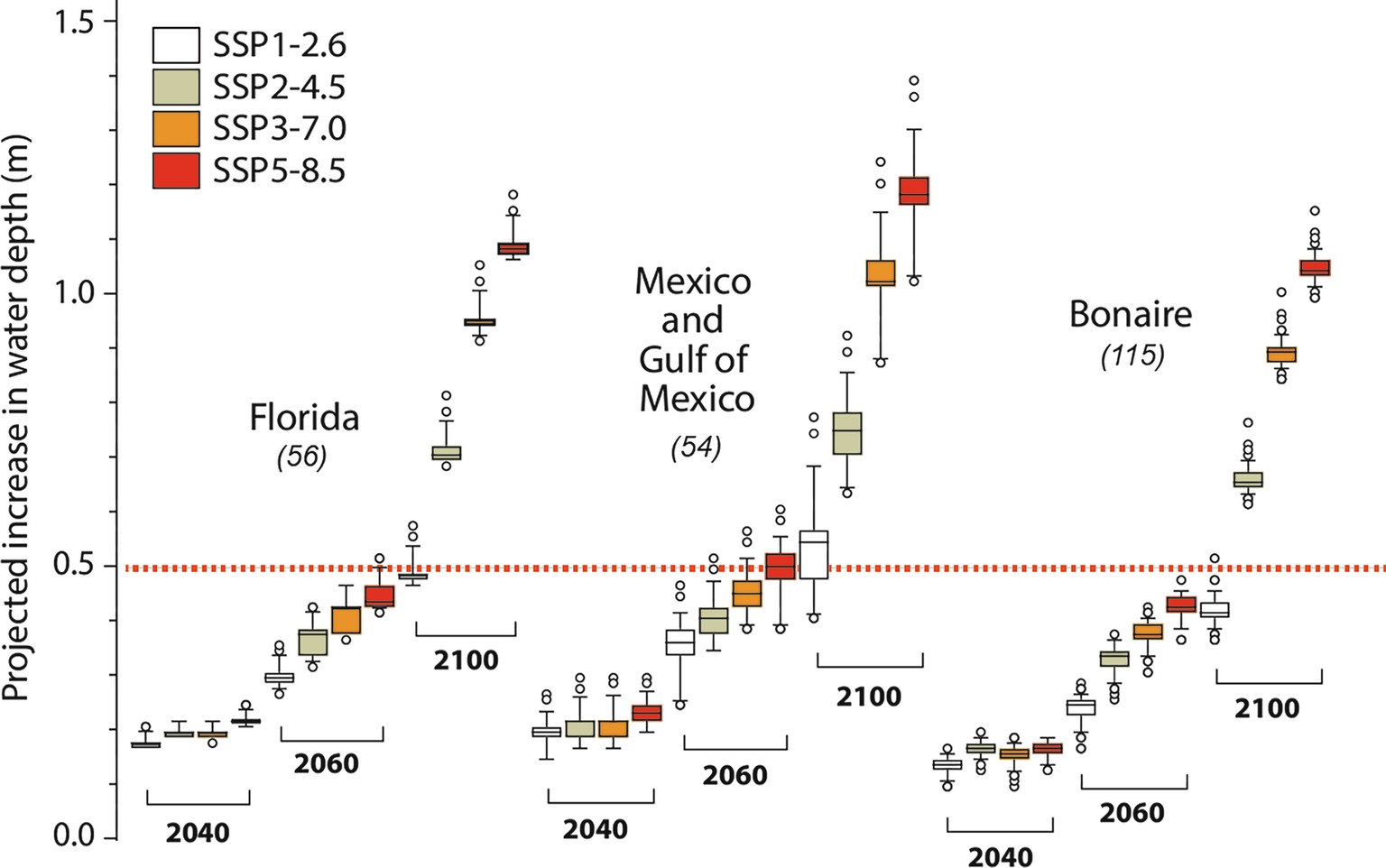

Extended Data Fig. 6: Projected increases in total water depth above fore-reef zones.
From: Reduced Atlantic reef growth past 2 °C warming amplifies sea-level impacts
Projected increases in total water depth (m) above fore-reef (6–12 m depth) zones of reefs in each country under each SSP scenario at 2040, 2060 and 2100. Italics in parentheses are number of replicates per scenario and time point. Box plots depict median (horizontal line), box height depicts first and third quartiles. Sites outside the 95th percentile are shown as circles. White circles show outliers. Dashed horizontal line represents the 0.5 m water depth increase point.
