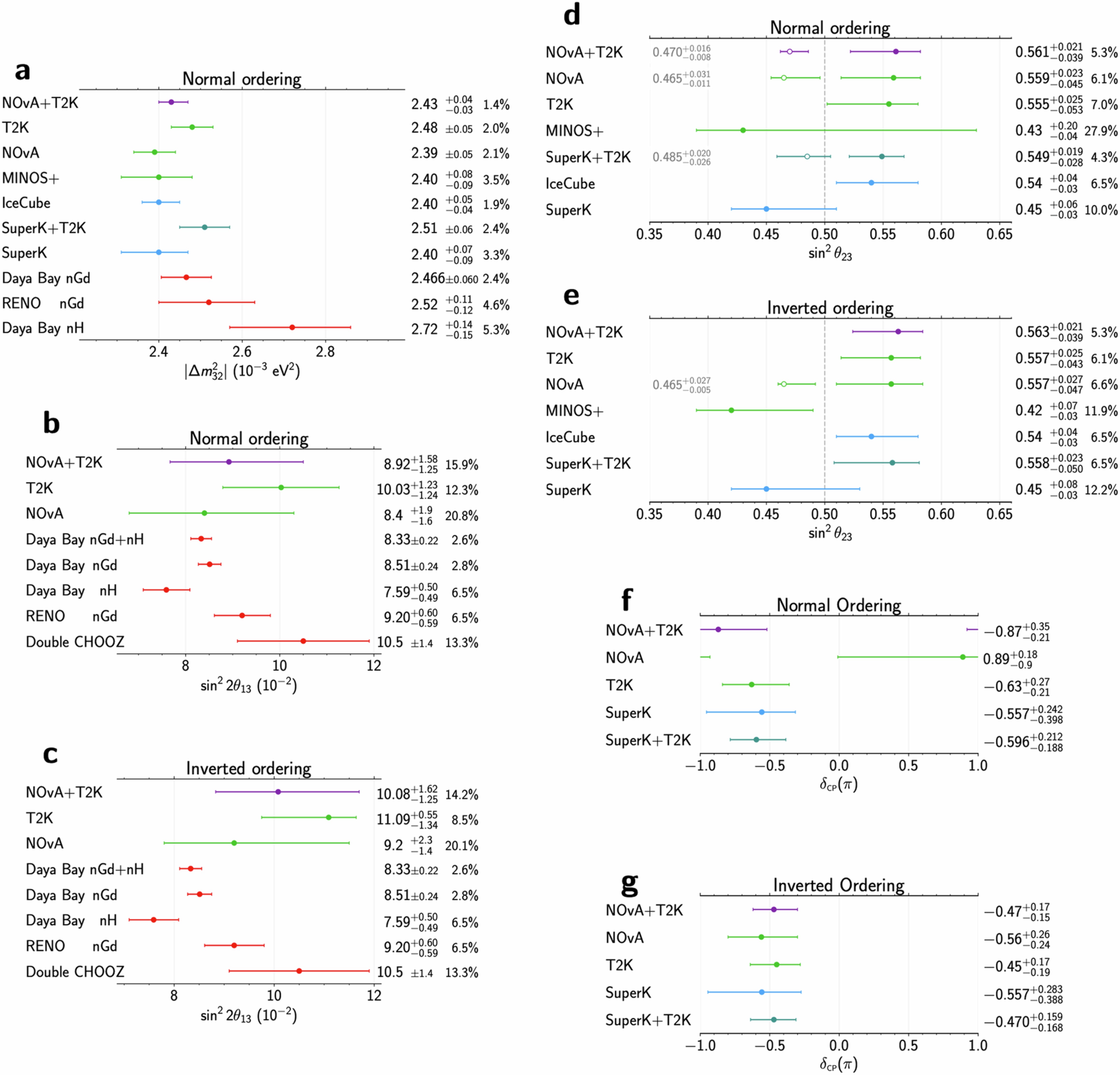

Extended Data Fig. 9: Experimental measurements of oscillation parameters.
From: Joint neutrino oscillation analysis from the T2K and NOvA experiments
\(| \Delta {m}_{32}^{2}| \) assuming normal ordering (a), with sources for the results from top to bottom starting with the second line as follows:13,14,43,44,45,46,47,48,49. \({\sin }^{2}2{\theta }_{13}\) assuming normal (b) and inverted (c) ordering, with sources for the results from top to bottom starting with the second line as follows:13,14,47,48,49,63. NOvA+T2K measurement here does not use the reactor constraint. \({\sin }^{2}{\theta }_{23}\) assuming normal (d) and inverted (e) ordering, with sources for the results from top to bottom starting with the second line as follows:13,14,43,44,45,46. Open circles denote a local minima position in lower octant. δCP assuming normal (f) and inverted (g) ordering, with sources for the results from top to bottom starting with the second line as follows:13,14,45,46.
