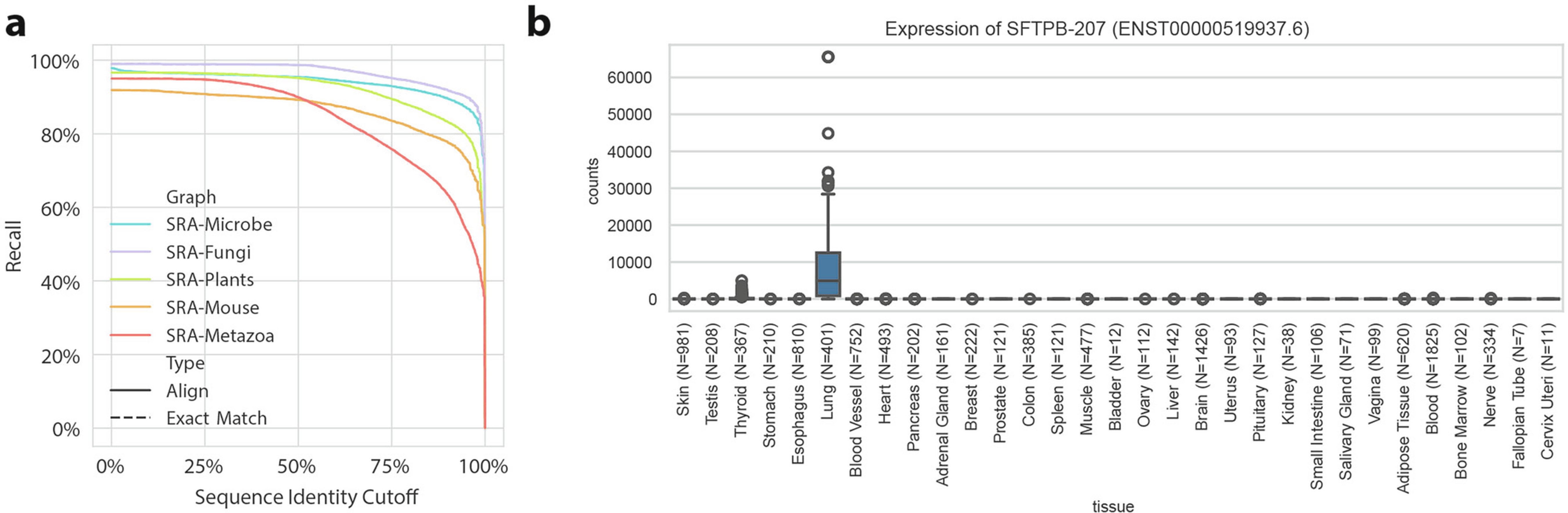

Extended Data Fig. 3: Completeness and specificity.
From: Efficient and accurate search in petabase-scale sequence repositories
a) Complementary ECDF curve showing the fraction of reads that can be re-aligned to indexes of their respective original samples (y-axis) requiring at least x% matching positions (x-axis) for a range of indexed SRA datasets. b) Distribution of sample counts retrieved from the MetaGraph GTEx index, containing N = 11,036 samples, for the transcript ENST00000519937.6 of the gene SFTPB, known to be specifically expressed in lung and thyroid tissues. Boxes range from first to third quartile, the centre lines represent the median, and the whiskers represent the 1.5× inter-quartile-ranges, outliers are shown as empty circles.
