Extended Data Fig. 8: Patch pattern transition of patchy rhombic dodecahedra.

From: Patchy nanoparticles by atomic stencilling

Extended Data Fig. 8: Patch pattern transition of patchy rhombic dodecahedra.The alternative text for this image may have been generated using AI.

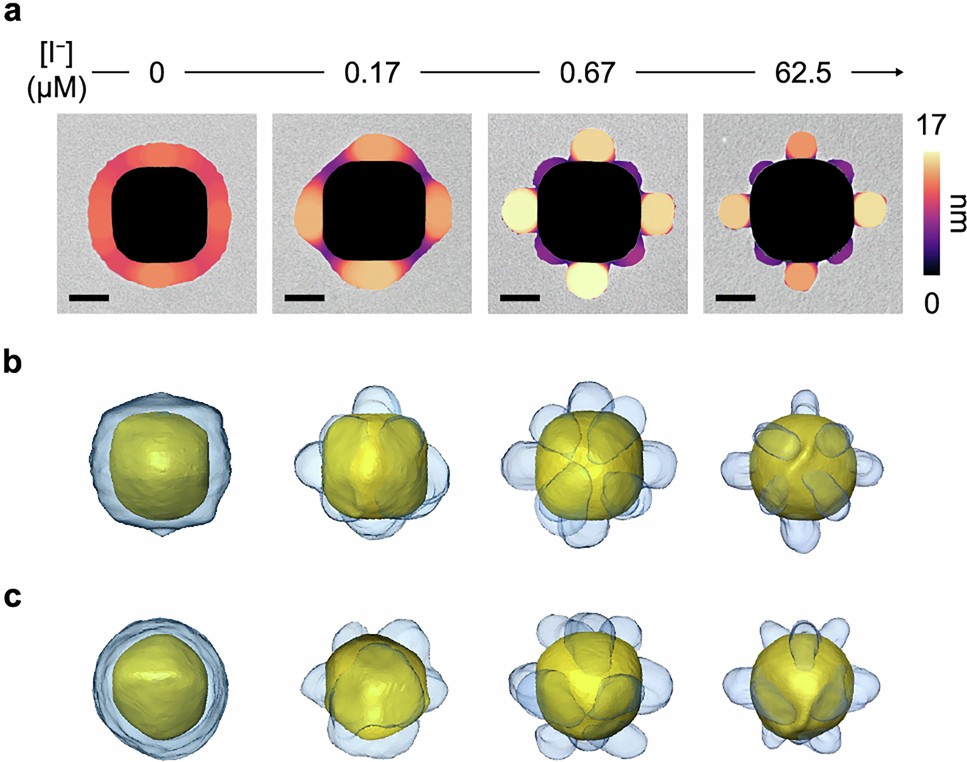

a, Representative TEM images of patchy small rhombic dodecahedra overlaid with patches colour-coded to their local thickness tloc. Reaction conditions from left to right: [I−] of 0, 0.17, 0.67 and 62.5 µM at a fixed [2-NAT] of 56.7 nM. b,c, Corresponding 3D reconstruction of patchy rhombic dodecahedra from TEM tomography shown along the [100] (b) and [111] directions (c). Scale bars, 20 nm.
