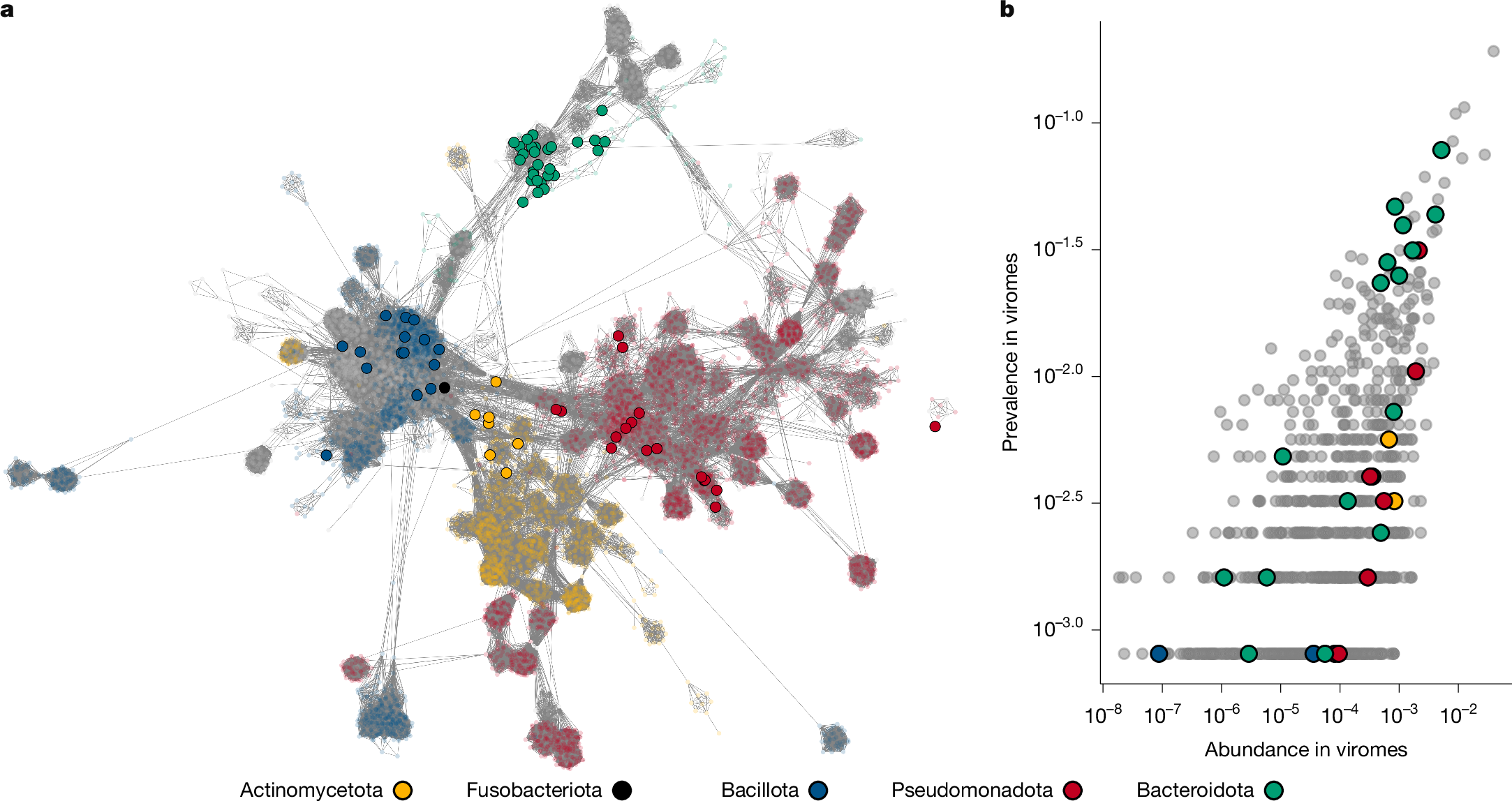

Fig. 2: Taxonomy and prevalence of induced temperate phages within gut viromes.
From: Isolation, engineering and ecology of temperate phages from the human gut
a, Gene sharing network of inducible prophage species (solid circles; n = 68) coloured by host. Actinomycetota is shown in yellow (7), Fusobacteriota in black (1), Bacillota in blue (15), Pseudomonadota in red (17) and Bacteroidota in teal (28). Database representatives (9,920) are translucent and coloured by host phyla when applicable, and are otherwise coloured grey. The portion of the network connecting to induced prophages is shown; the full network is shown in Extended Data Fig. 3. b, The mean fractional abundance and detection frequency (prevalence) of Caudoviricetes phages within 1,241 viromes originating from the human gut. A minimum of 70% coverage over the phage was required to be counted as present within a virome. The bacterial host phyla of inducible prophage species coloured as in a, and database reference genomes (n = 875) are shown in grey.
