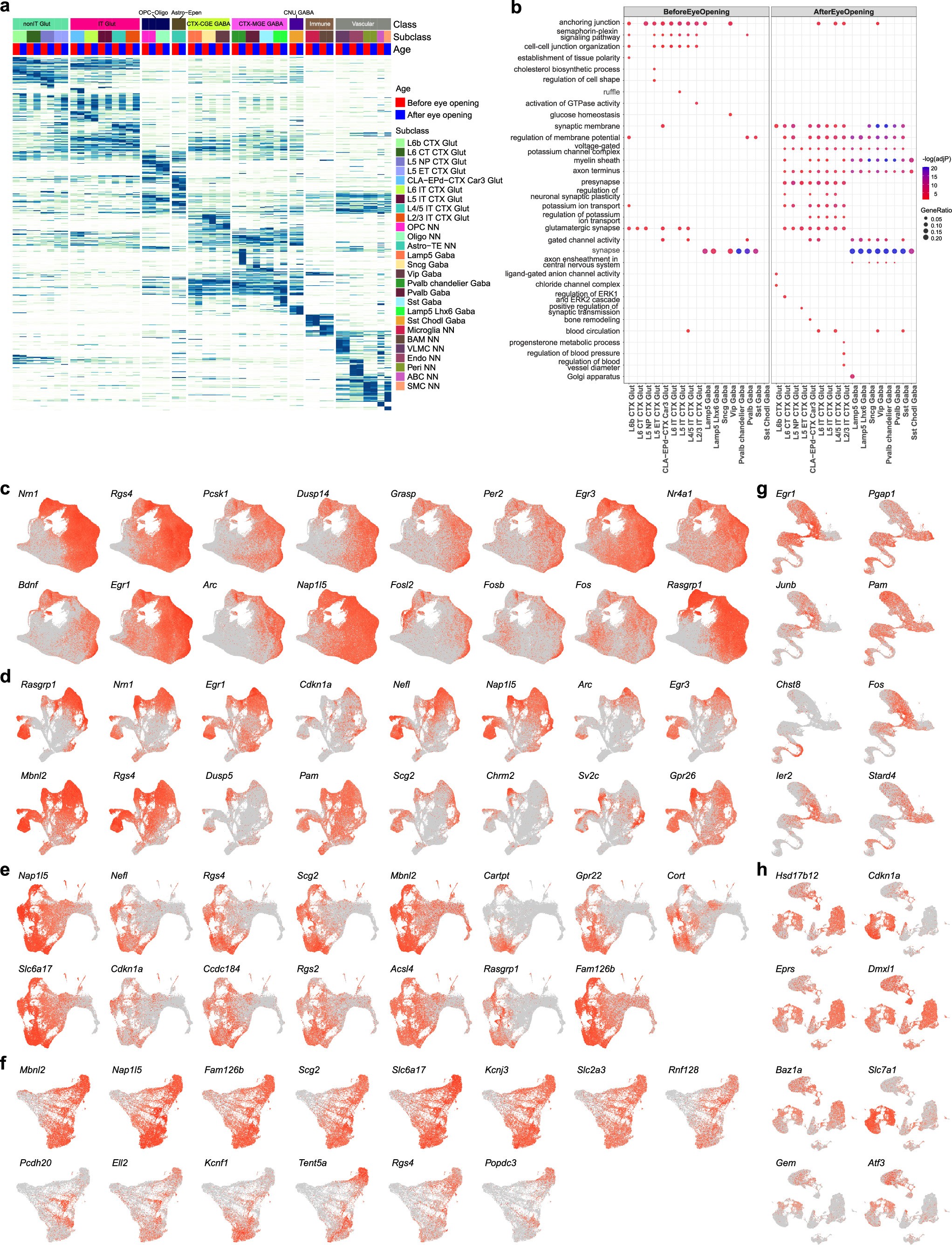

Extended Data Fig. 12: Gene expression changes before and after eye opening.
From: Continuous cell-type diversification in mouse visual cortex development
(a) Heatmap showing the expression of specific DE genes in each subclass before and after eye opening. (b) GO enrichment dot plot showing example significant top GO terms before or after eye opening in each neuronal subclass. Dot size and color indicate gene ratio (the percentage of genes that are present in a GO term compared to the total number of genes in that category) and significance (-log10 adjusted p-value), respectively. A Benjamini-Hochberg (BH) adjusted p-value cutoff of 0.01 was used to determine significant GO terms. Max gene ratio was set to 0.2 and max significance was set to 20. (c-h) UMAP representations showing expression changes of representative immediate early genes (IEGs) in IT glutamatergic (c), nonIT glutamatergic (d), MGE GABAergic (e), CGE GABAergic (f), glial (g) and immune and vascular (h) cell types.
