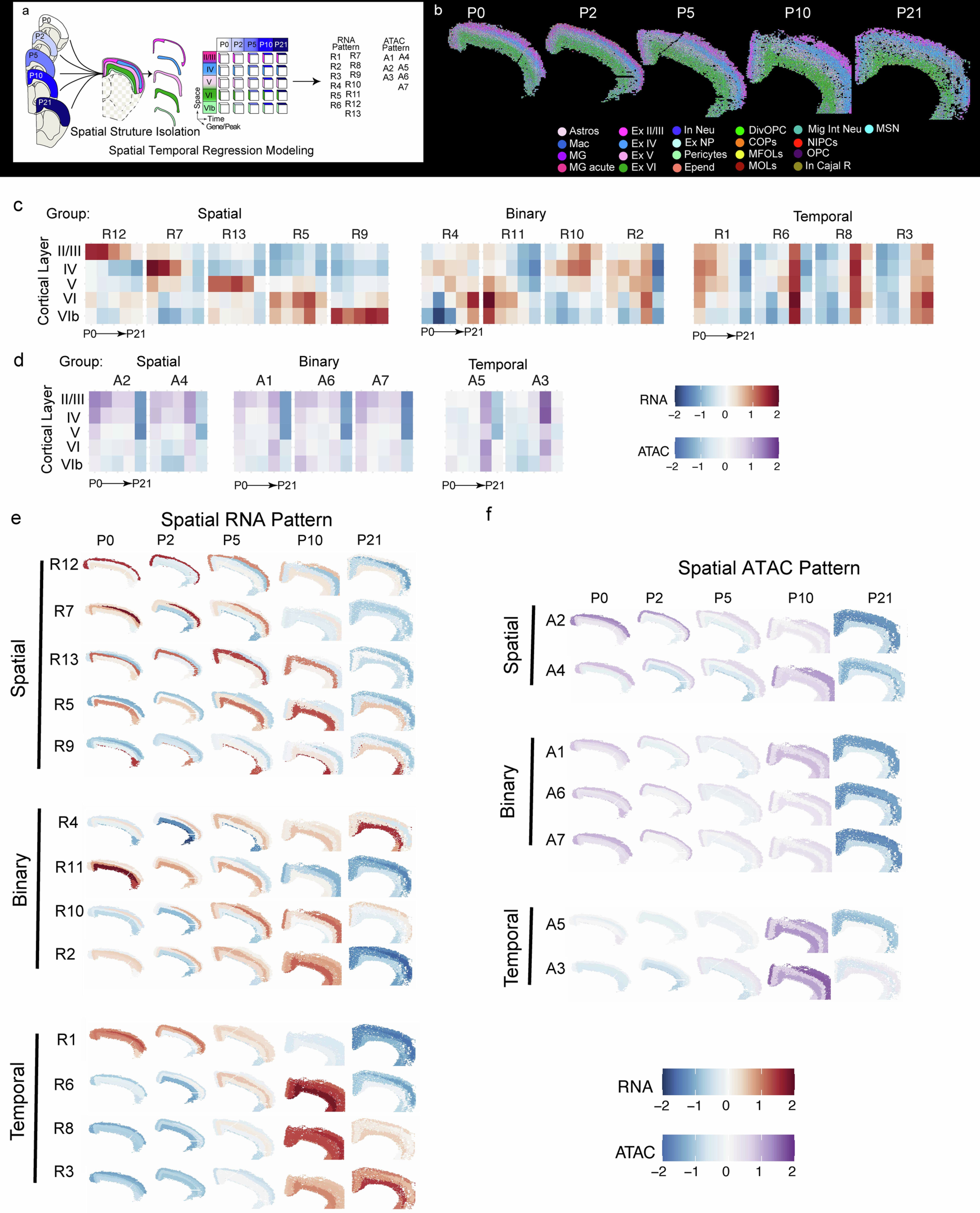

Extended Data Fig. 6: Further analysis of developing mouse brain cortical layers.
From: Spatial dynamics of brain development and neuroinflammation
a, Schematic of the spatiotemporal regression model on mouse brain cortical layers. b, Different cell types in cortical layers (S1) from the spatial RNA data. c, Heatmaps of the 13 RNA clusters generated from the regression model (S1). d, Heatmaps of the 7 ATAC clusters generated from the regression model (S1). e-f, Spatial RNA (e) and ATAC (f) patterns generated from the regression model (S1).
