Extended Data Fig. 3: Evolution of MR fiber structure during melt spinning and in-situ high-speed drawing.

From: Vector-stimuli-responsive magnetorheological fibrous materials

Extended Data Fig. 3

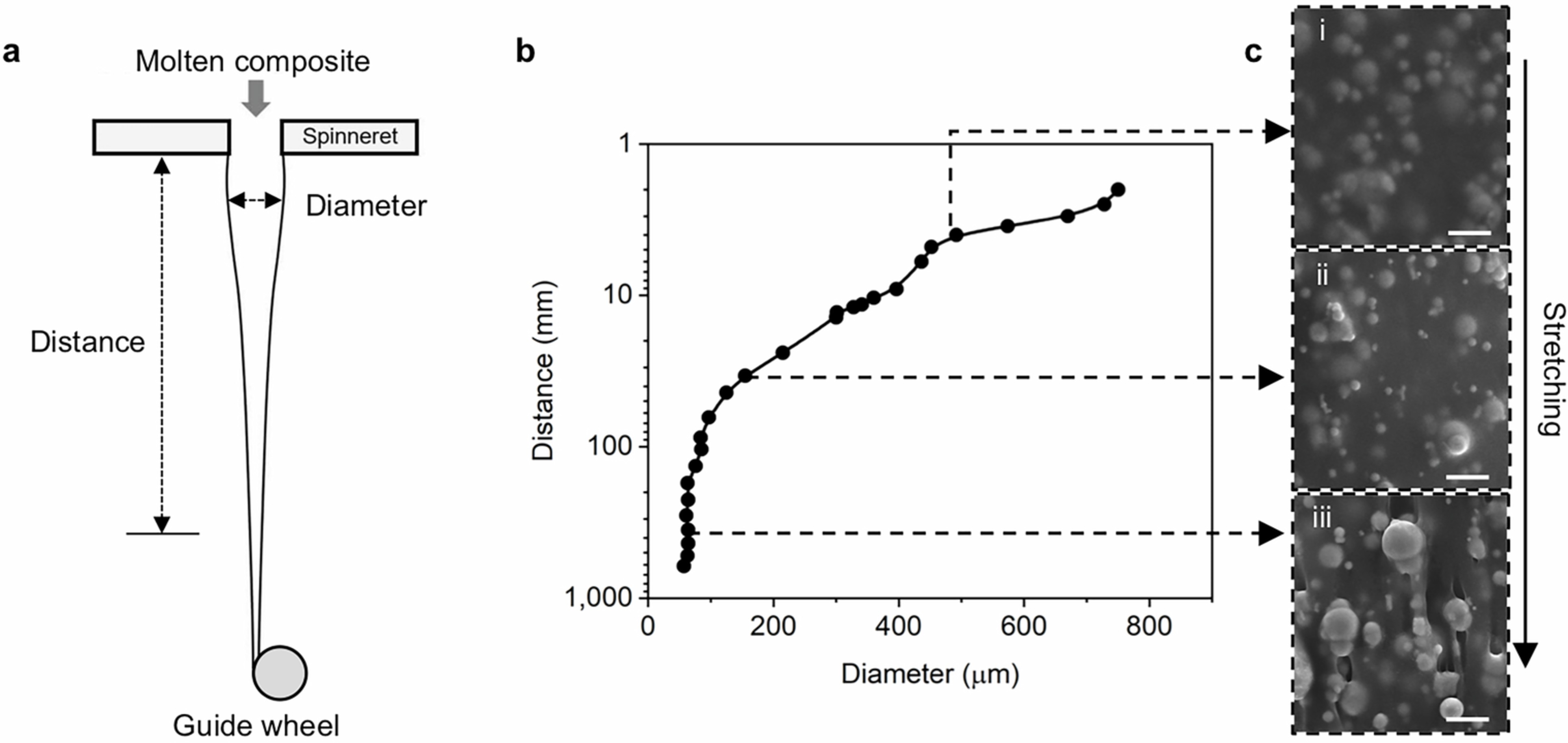

a, Sketch of the single filament during the process of melt spinning and in-site high-speed drawing. b, Fiber diameter at different distances away from the spinneret. c, Surface morphology of fibers with diameters corresponding to those presented in b. Scale bars, 5 μm.
