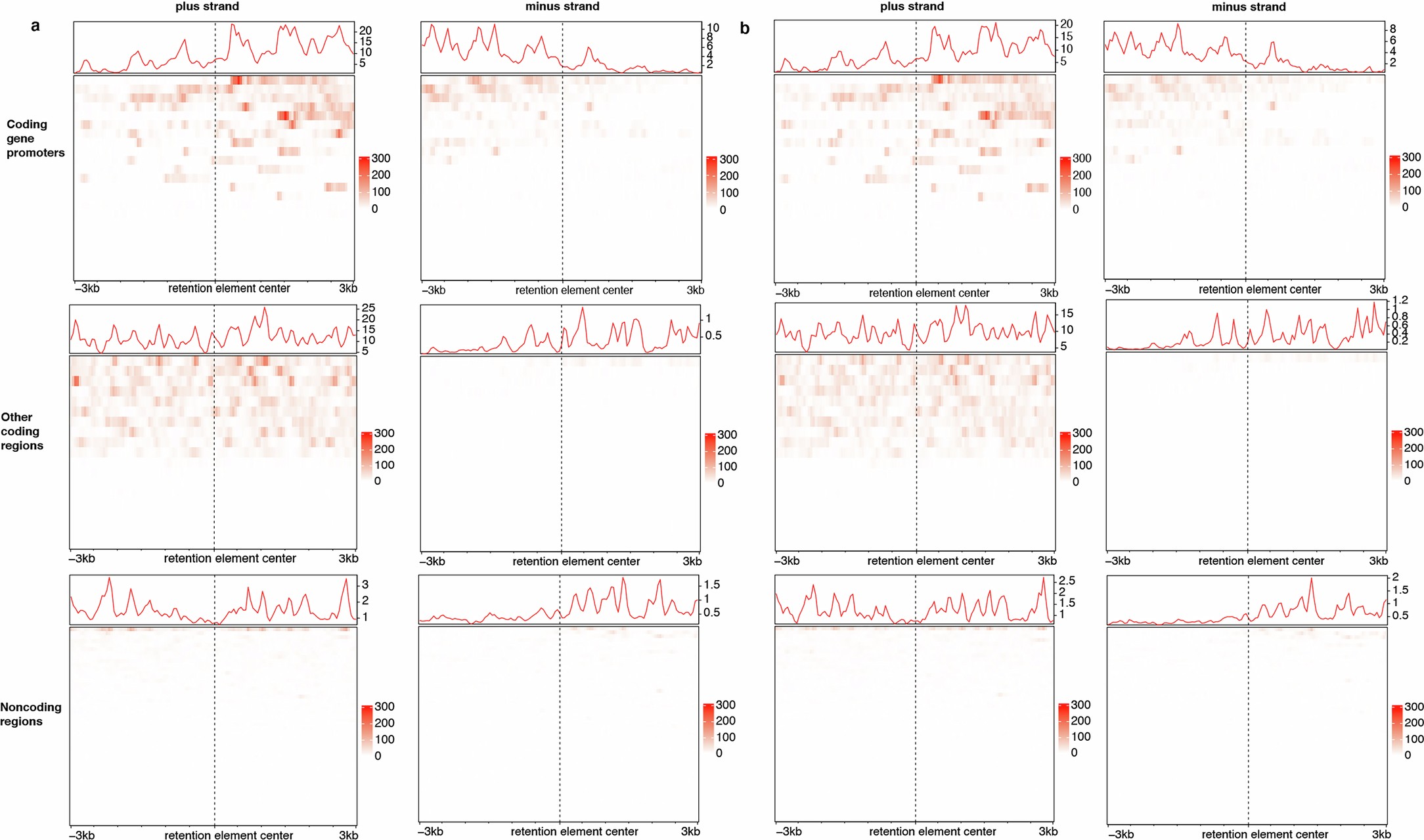

Extended Data Fig. 4: Many, but not all retention elements represent sites of active nascent transcription.
From: Genetic elements promote retention of extrachromosomal DNA in cancer cells
(a) Histograms and heatmaps of COLO320DM GRO-seq signal from biological replicate 1, computed over 50 bp bins within 3 kb of the midpoints of retention elements located within the genomic coordinates of the COLO320DM ecDNA. Retention elements were divided into 3 categories based on overlap with genomic annotations: those that overlap with coding gene promoters, other portions of coding genes, or noncoding regions. X-axis directionality is consistent for both strands. (b) Heatmap of COLO320DM GRO-seq signal from biological replicate 2 within 3 kb of the midpoints of retention elements located within the genomic coordinates of the COLO320DM ecDNA.
