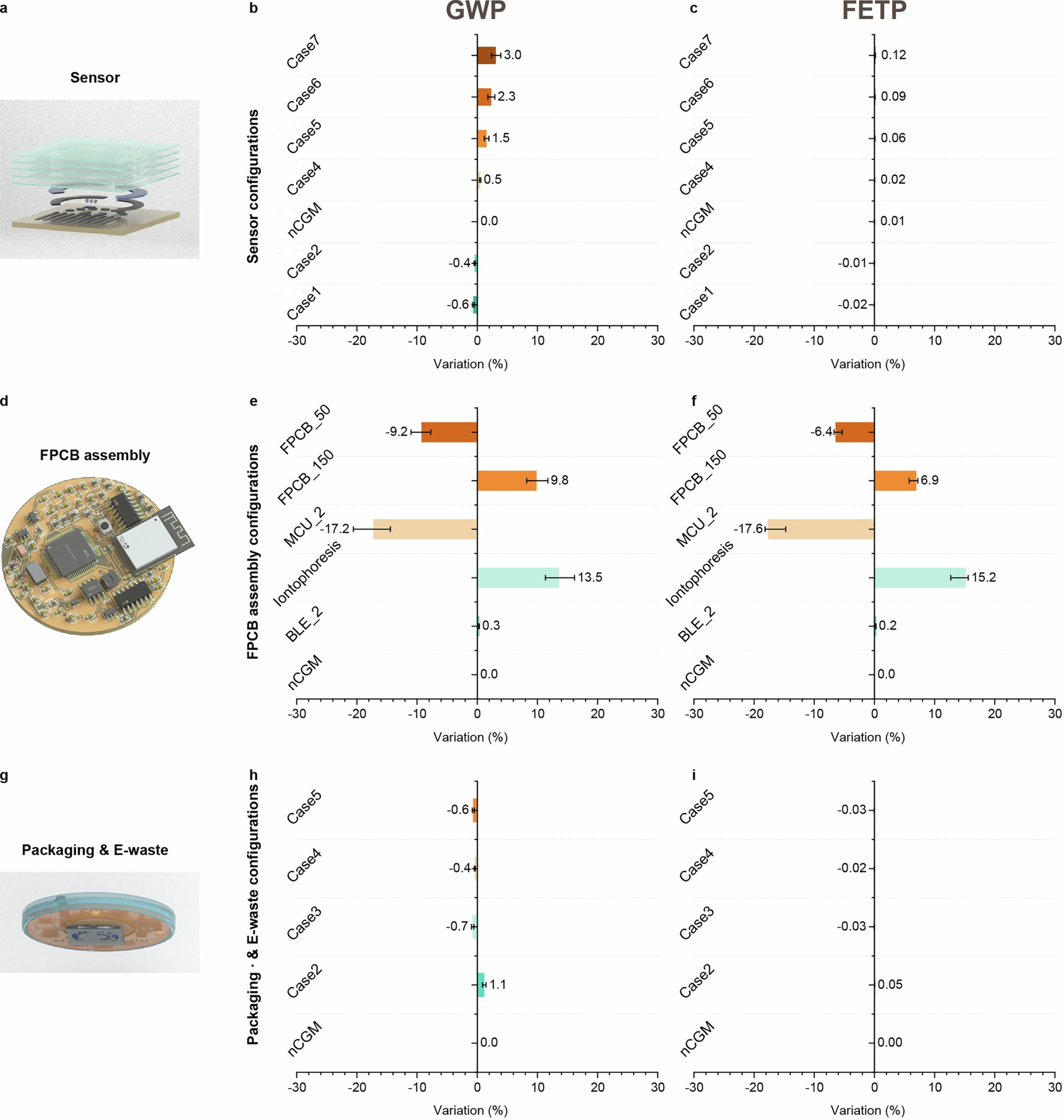

Extended Data Fig. 2: Sensitivity analysis of nCGM under configuration variations.
From: Quantifying the global eco-footprint of wearable healthcare electronics
Overall GWP (b, e, h) and FETP (c, f, i) variations are shown for different configurations, including seven sensor designs (a-c), six FPCB modules (d-f), and five packaging scenarios with associated e-waste treatments (g-i), evaluated at the device level. Error bars denote 95% uncertainty bounds (2.5th–97.5th percentile) derived from the Ecoinvent pedigree matrix (log-normal approximation).
