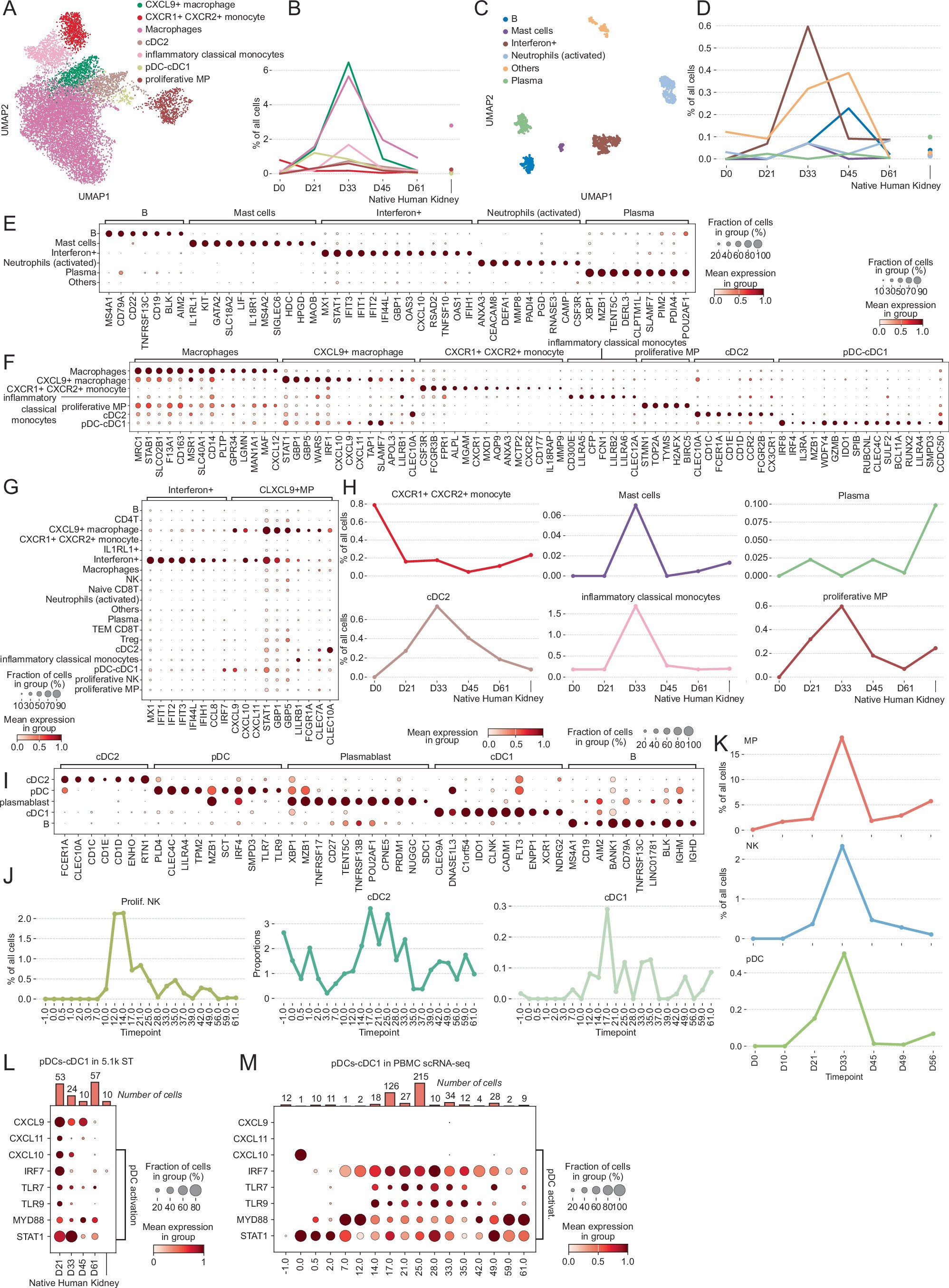

Extended Data Fig. 1: Further dissection of human macrophages, NK cells, B cells and dendritic cells.
From: Multi-omics analysis of a pig-to-human decedent kidney xenotransplant
A-B. Dimensionality reduction graph (A) and percentage across all cells by timepoint (B) for human macrophage, monocytes and dendritic subtypes found in the 5.1k panel ST data colored by cell-type (11205 cells). C-D. Dimensionality reduction graph (C) and percentage across all cells by timepoint (D) for B cells, plasma cells, mast cells and neutrophils found in the 5.1k panel ST data (1652 cells). E-G. Marker gene expression of the populations in the 5.1k panel ST data. H. Percentage levels for additional cell-type populations not shown in the main figure. I-J. Cell-type markers (I) and associated percentage (J) of B, plasma, and dendritic cell populations found in the PBMC scRNAseq data. K. Percentage of human macrophages, pDC and NK cells found in the 478 panel ST data. L-M. pDC activation marker genes and CXCL9 – CXCL11 expression in pDC-cDC1 populations in 5.1k ST data (L) and PBMC scRNAseq data (M).
