Extended Data Fig. 2: Cataloging key TFs across CD8+ T cell states.

From: Atlas-guided discovery of transcription factors for T cell programming

Extended Data Fig. 2

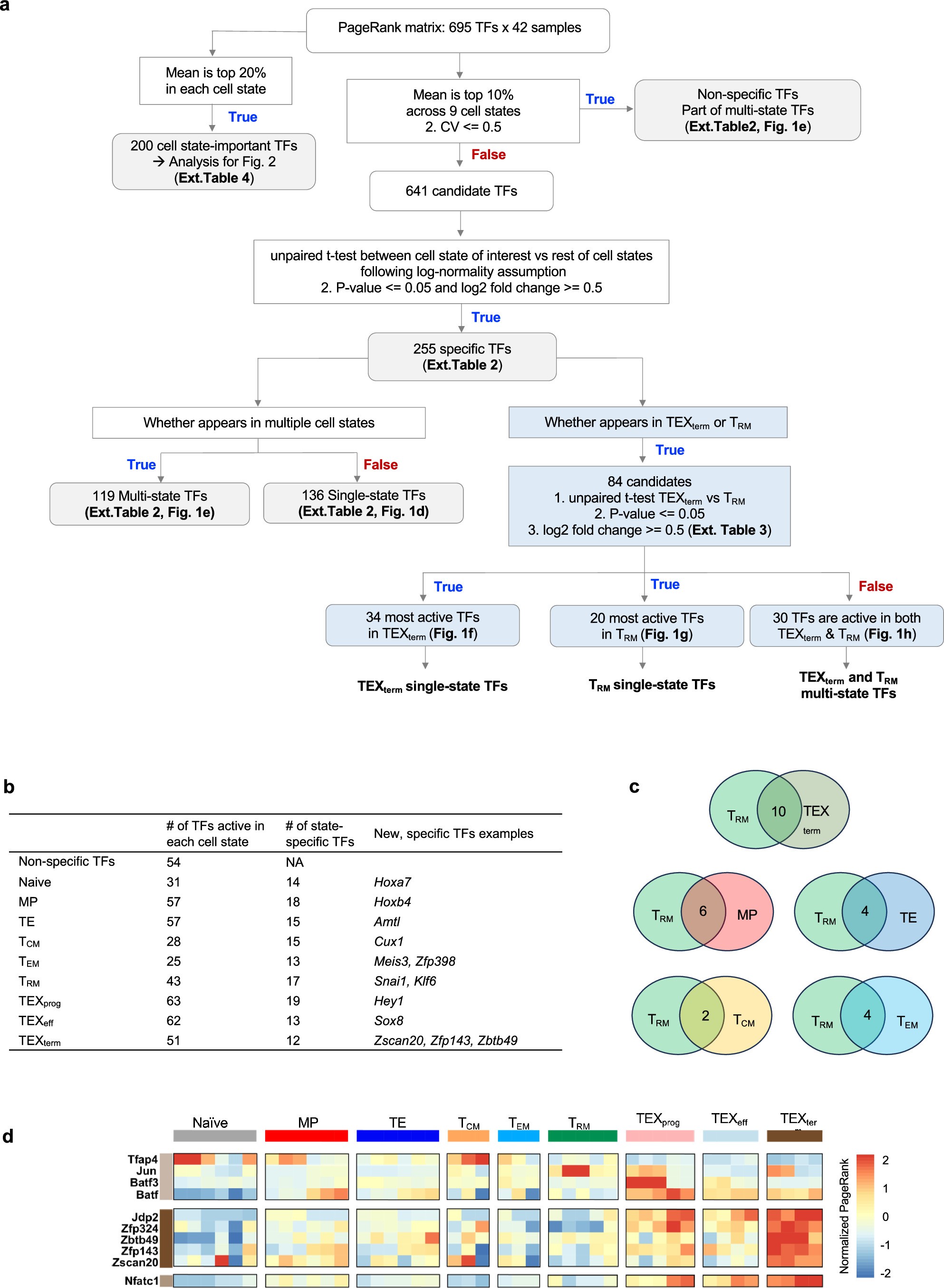

a, Logic flow of the unbiased PageRank comparison to classify single-state/multi-state TFs. b, Number of TFs catalogued in each cell state. c, Venn Diagrams showing overlap of TFs with the TRM cell state. d, TF activity score (normalized PageRank) of previously reported TEXterm-preventing TFs (TFAP4, JUN, BATF3, and BATF), newly identified TEXterm single-state TFs (JDP2, ZFP324, ZBTB49, ZFP143, ZSCAN20), and NFATC1, a known TEXterm-associated TF.
