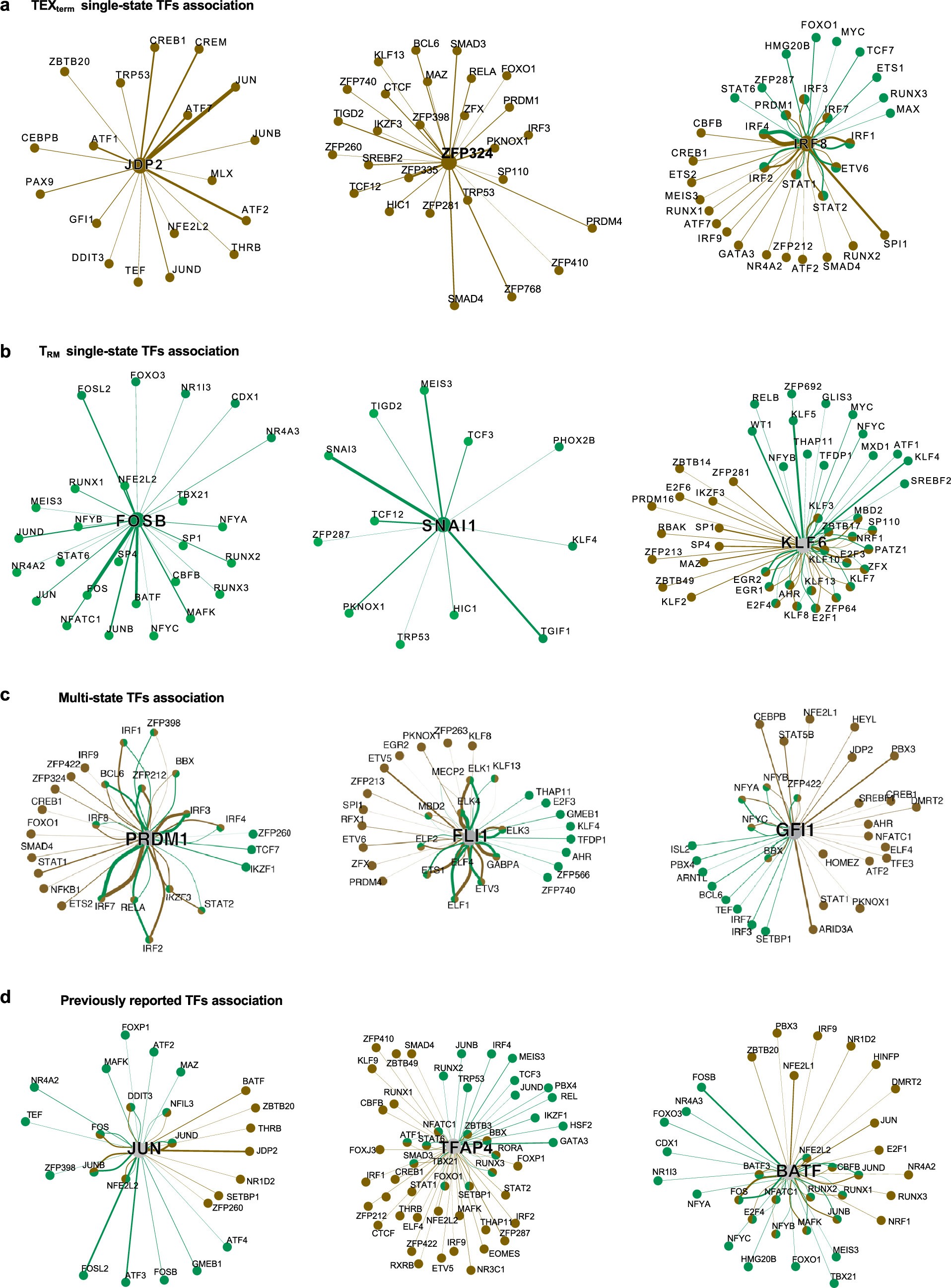

Extended Data Fig. 4: TF–TF association network in TEXterm and TRM cell states.
From: Atlas-guided discovery of transcription factors for T cell programming
a–c, TF–TF associations of (a) TEXterm single-state TFs (JDP2, ZFP324, and IRF8); (b) TRM single-state TFs (FOSB, SNAI1, and KLF6); (c) multi-state TFs shared by TEXterm and TRM (PRDM1, FLI1, and GFI1); and (d) previously reported TFs whose OE prevent TEXterm–JUN, TFAP4, and BATF. Line color indicates state specificity: TRM (green) or TEXterm (brown) state. Line thickness represents interaction intensity. Line color indicates state specificity: TRM (green) or TEXterm (brown) state. Line thickness represents interaction intensity.
