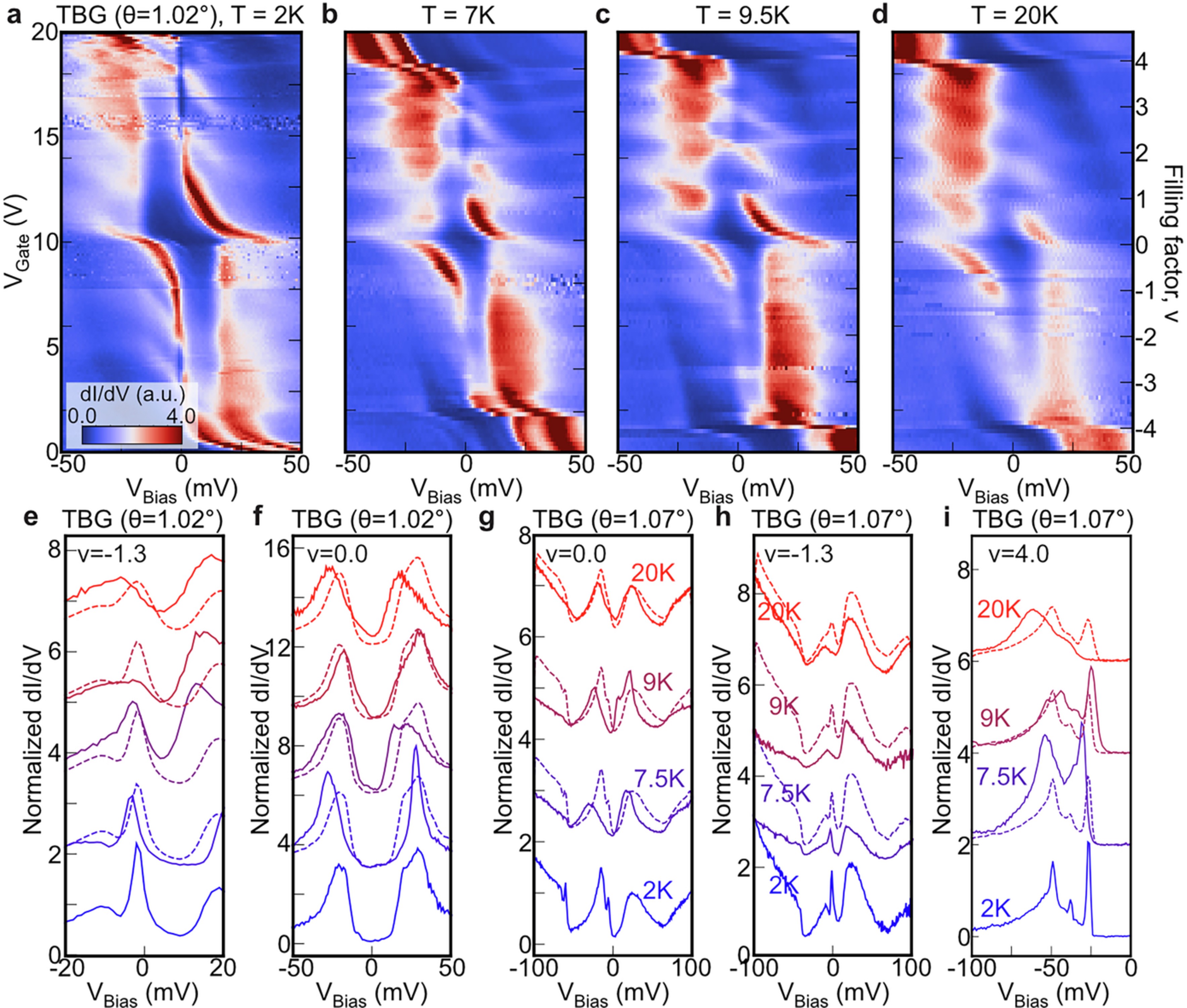

Extended Data Fig. 1: Temperature-dependent evolution of MATBG sample.
From: Resolving intervalley gaps and many-body resonances in moiré superconductors
a–d, VGate-dependent dI/dV spectroscopy measured on MATBG device at an area with local twist angle θ = 1.02° for temperature T = 2 K (a), T = 7 K (b), T = 9.5 K (c) and T = 20 K (d). e,f, Temperature-dependent spectrum taken from a–d at filling factors ν = −1.3 (e) and ν = 0 (f). The dashed line is the convolution of 2-K data with Fermi–Dirac distribution function at each temperature. g–i, Temperature-dependent spectrum taken at different parts of the same MATBG sample for which the local twist angle is θ = 1.07° at filling factors ν = 0 (g), ν = −1.3 (h) and ν = 4.0 (i).
