Extended Data Fig. 4: Image processing procedure for the cryo-EM structure of STING bound to cGAMP/PI4P/STG2 and the quality of the structure.

From: Regulation of STING activation by phosphoinositide and cholesterol

Extended Data Fig. 4

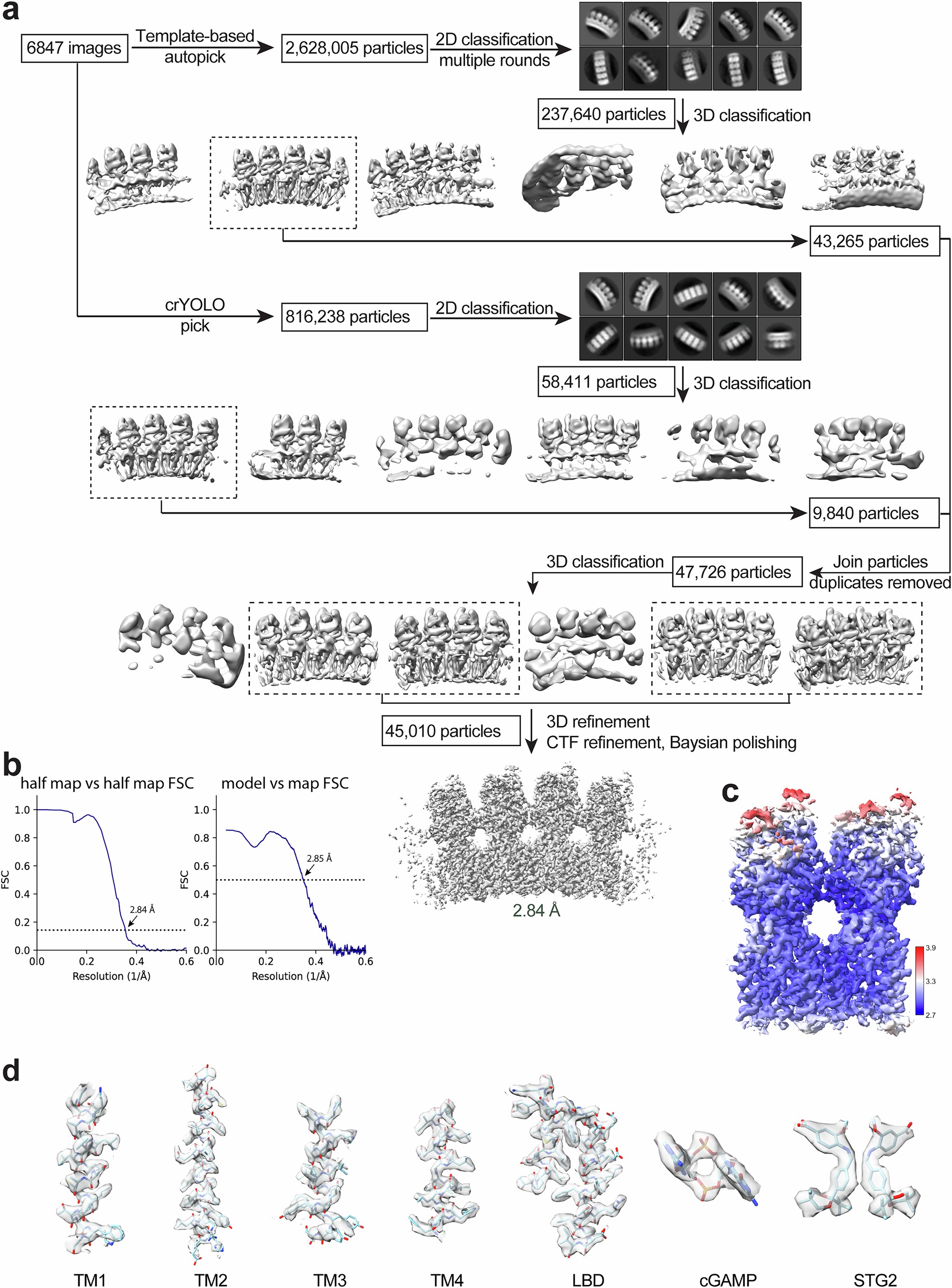

(a) Image processing procedure. (b) Gold-standard FSC curve of the final 3D reconstruction (left) and FSC between the map and atomic model (right). (c) Local resolution map of the final 3D reconstruction. (d) Sample densities of various parts of the structure.
