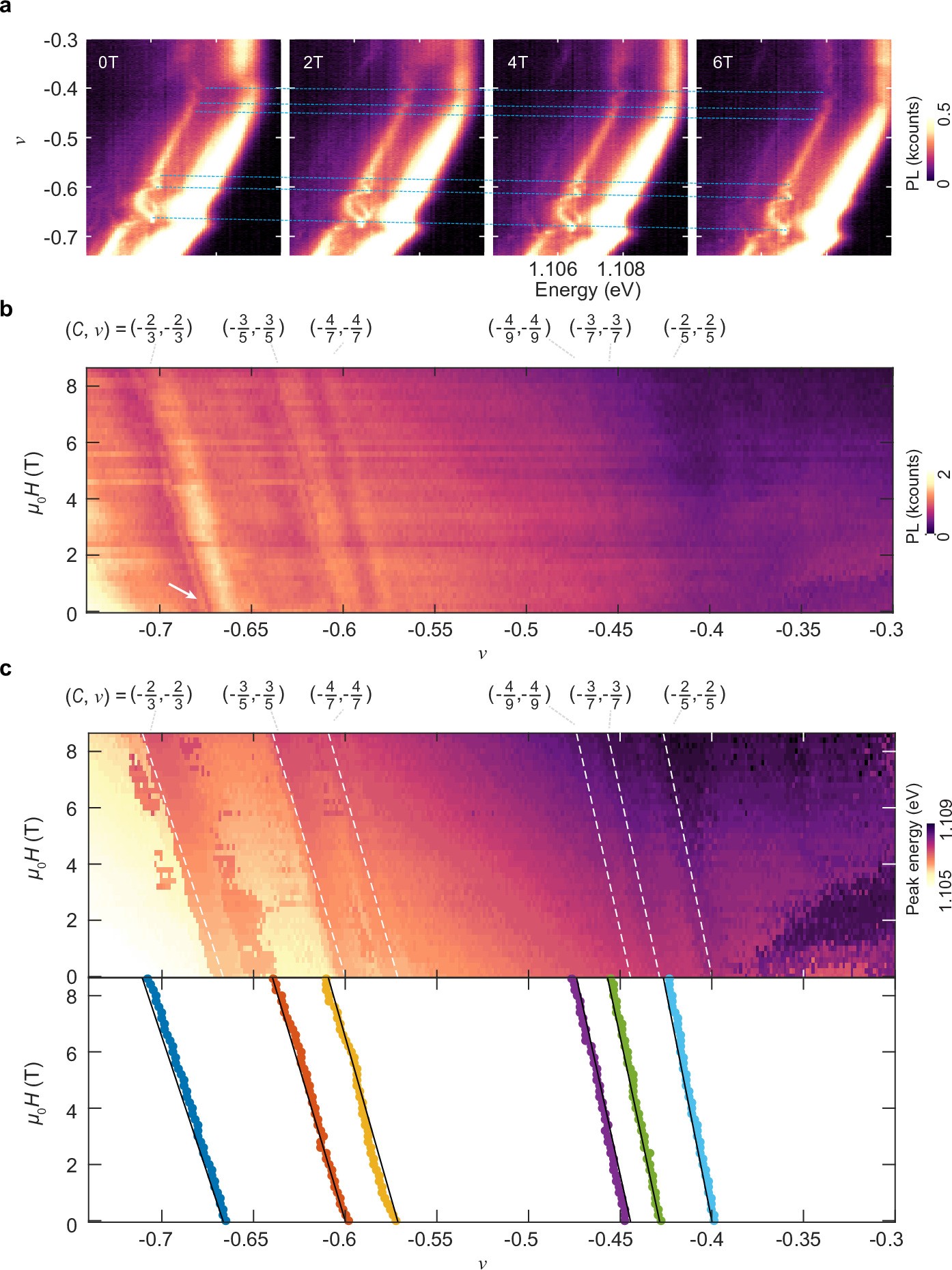

Extended Data Fig. 3: Fan diagram obtained from integrated PL intensity over trapped trions.
From: Signatures of fractional charges via anyon–trions in twisted MoTe2
a, PL intensity plot versus filling ν and photon energy at selected magnetic fields. The dashed lines are guides to the eye for FCI states at ν = −2/3, −3/5, −4/7, −4/9, −3/7, and −2/5. b, Optically detected fan diagram from spectrally integrated PL intensity versus μ0H and filling factor ν. The additional feature (−0.685 <ν < −0.675) highlighted by the white arrow is the anyon trion. c, Top panel, optically detected fan diagram from tracking the peak energy of the quantum confined trion versus v and magnetic field, reproduced from the main text Fig. 1f for comparison with b. The bottom panel shows the corresponding Wannier diagram, where the FCI states are traced and overlaid with the expected Streda slope. Linear fits yield C = −0.63(4), −0.58(4), −0.53(3), −0.43(2), −0.41(3), and −0.38(4) for ν = −2/3, −3/5, −4/7, −4/9, −3/7, and −2/5, respectively.
