Extended Data Fig. 1: Benchmarking of DISH and state-of-the-art 3D printing methods.

From: Sub-second volumetric 3D printing by synthesis of holographic light fields

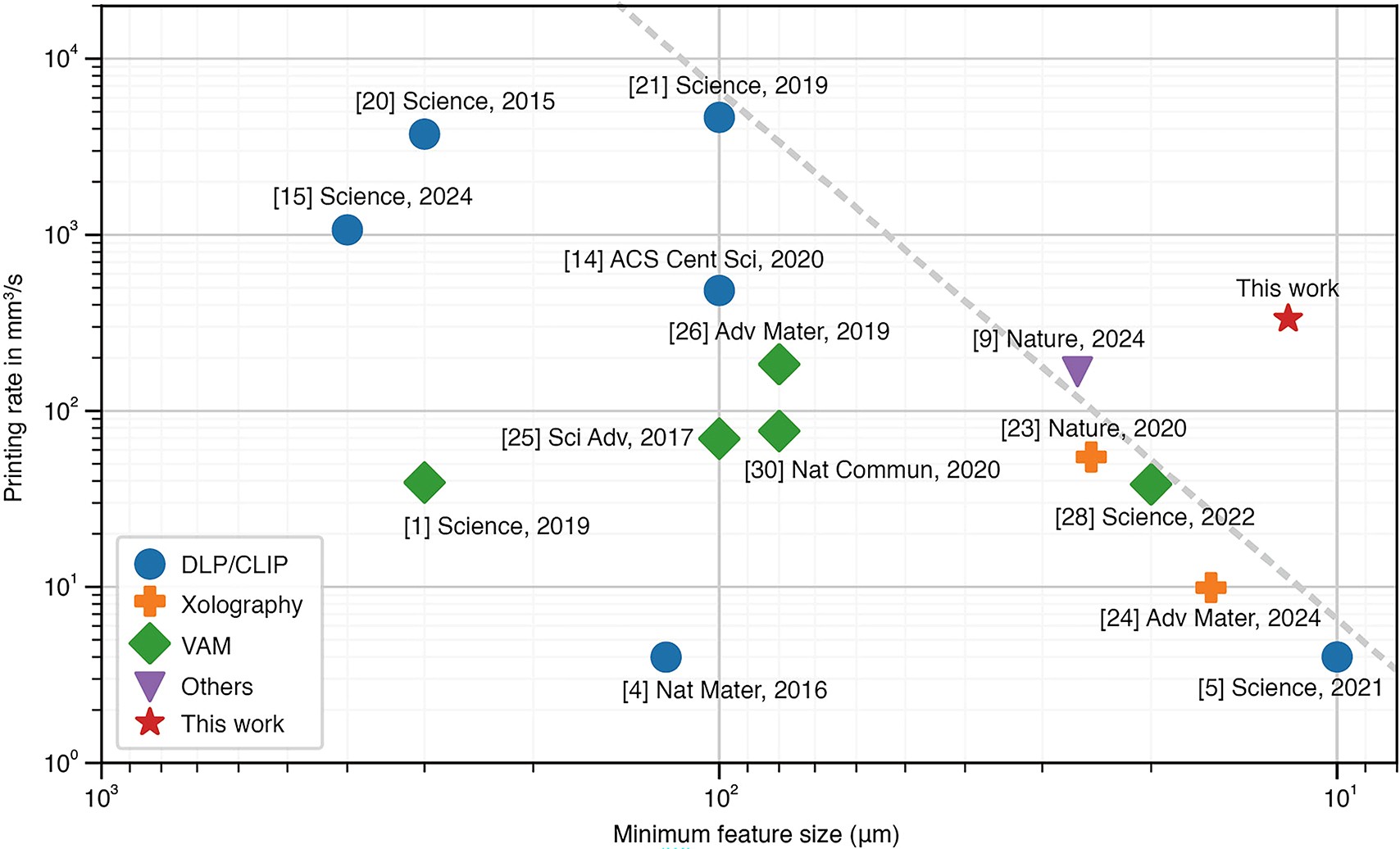

Extended Data Fig. 1: Benchmarking of DISH and state-of-the-art 3D printing methods.

We compare the volumetric printing rate and the corresponding minimum feature sizes for several 3D printing methods. The dashed line represents a voxel printing rate of 6.5 × 106 voxels s−1, estimated under the assumption that the voxels in these works are cubes with the side length equal to the minimum feature size.
