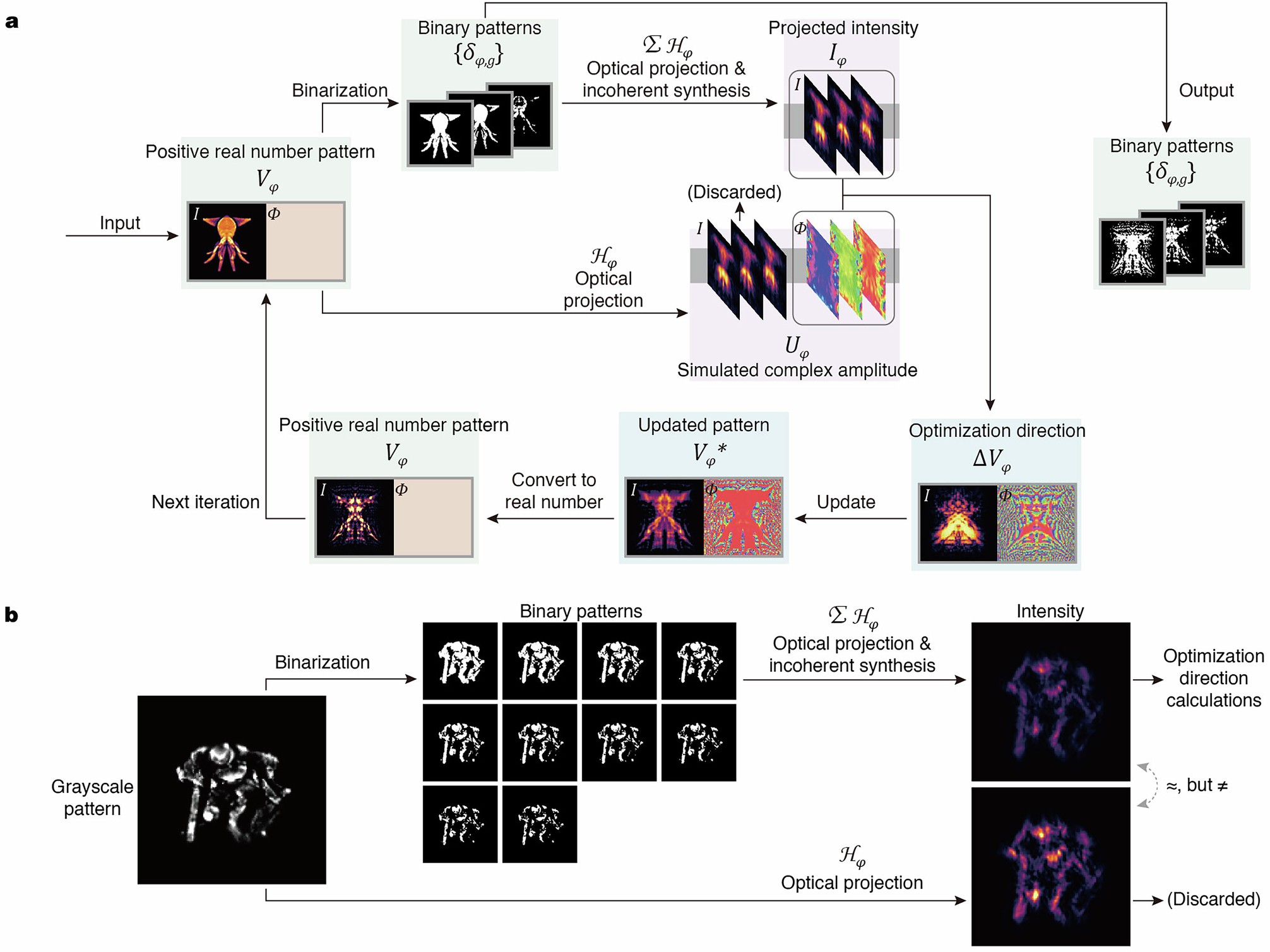

Extended Data Fig. 4: Flow chart of the holographic optimization for the binary patterns of each angle.
From: Sub-second volumetric 3D printing by synthesis of holographic light fields
a, Flow chart of the gradient-descent-based holographic algorithm. b, Simulation for binarization-induced intensity error at the out-of-focus plane, illustrating the necessity of the holographic model during calculation.
