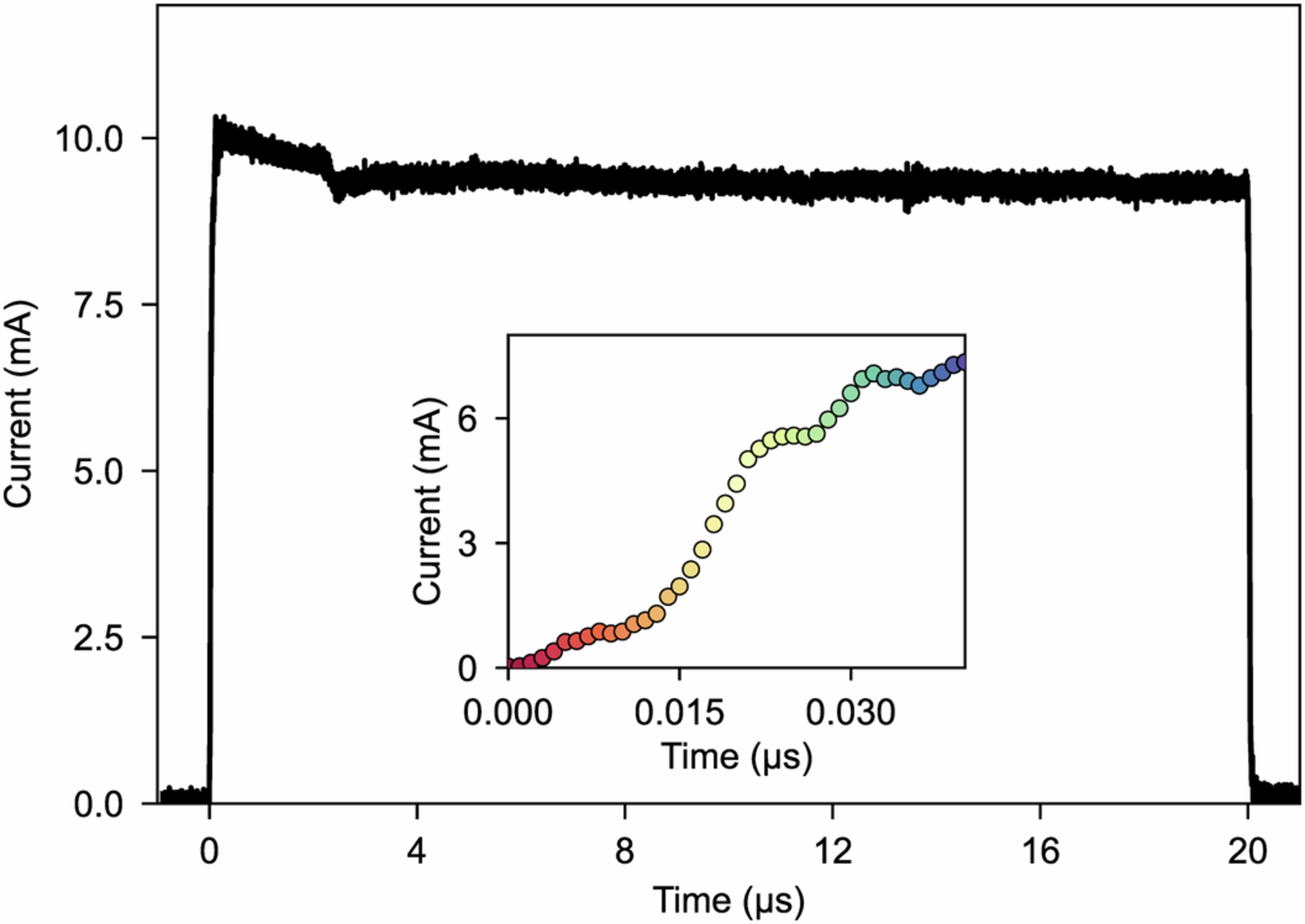

Extended Data Fig. 3: Transient switching response of the memristor.
From: Integrated memristor for mitigating reverse-bias in perovskite solar cells
Upon application of a voltage step of −0.5 V, the device transitions from its high-resistance (off) state to its low-resistance (on) state, reaching 1 mA of current in approximately 10 ns and rising to 8 mA in less than 40 ns as the zoomed-in inset shows.
