Extended Data Fig. 4: Genomic context of each of the major genetic changes undergone by sBD1 and BD2 in Bangladesh.

From: Evolution of pandemic cholera at its global source

Extended Data Fig. 4: Genomic context of each of the major genetic changes undergone by sBD1 and BD2 in Bangladesh.

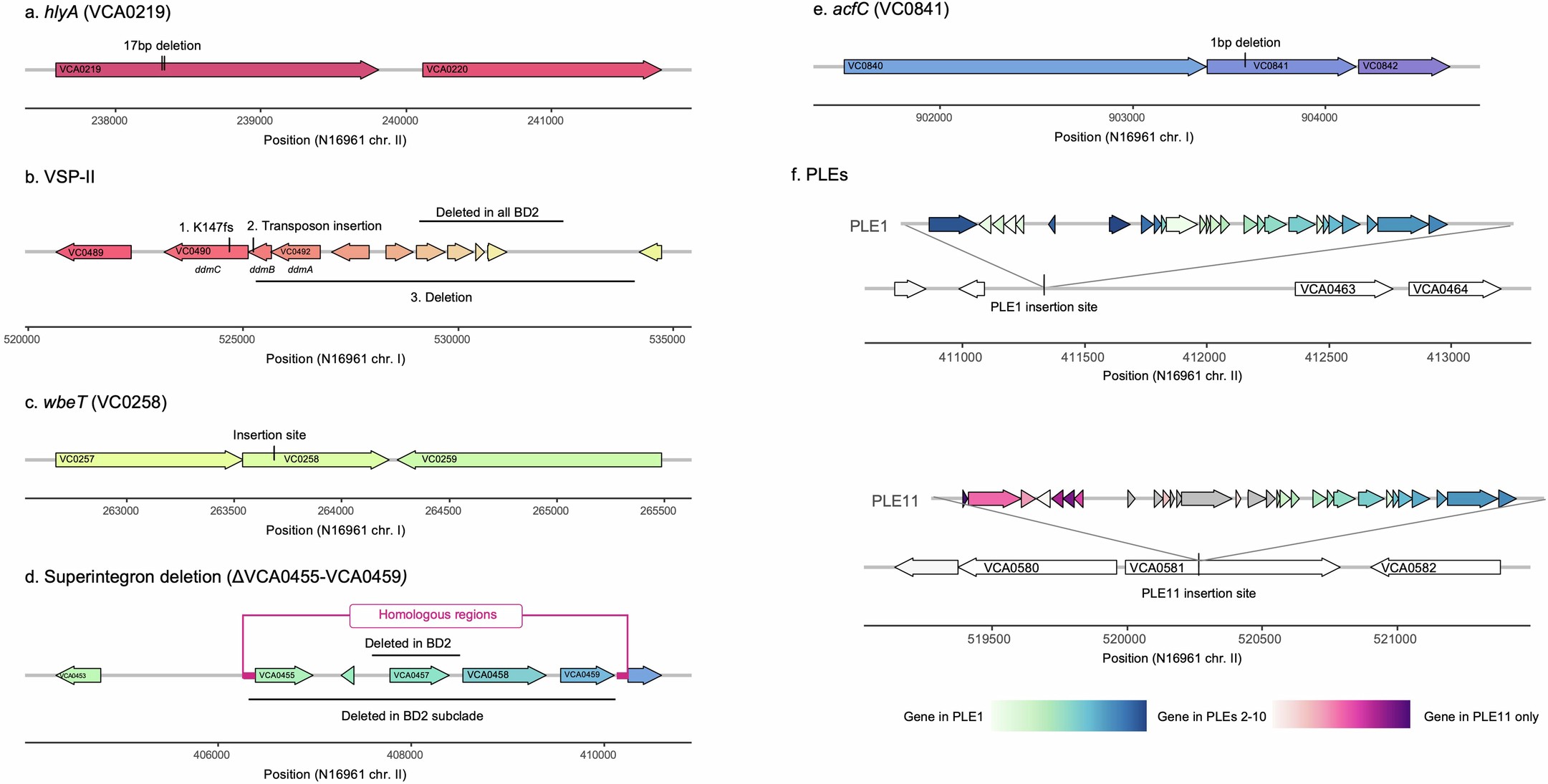

a. hlyA (VCA0219) b. VSP-II region c. wbeT (VC0258) d. Deletion in the superintegron e. acfC (VC0841) f. PLEs. For PLE11, genes are coloured by whether they are shared with PLE1 (as determined by Panaroo v1.3.4 with a default sequence identity threshold of 0.98), rarer PLEs 2−10, or are unique to PLE11.
