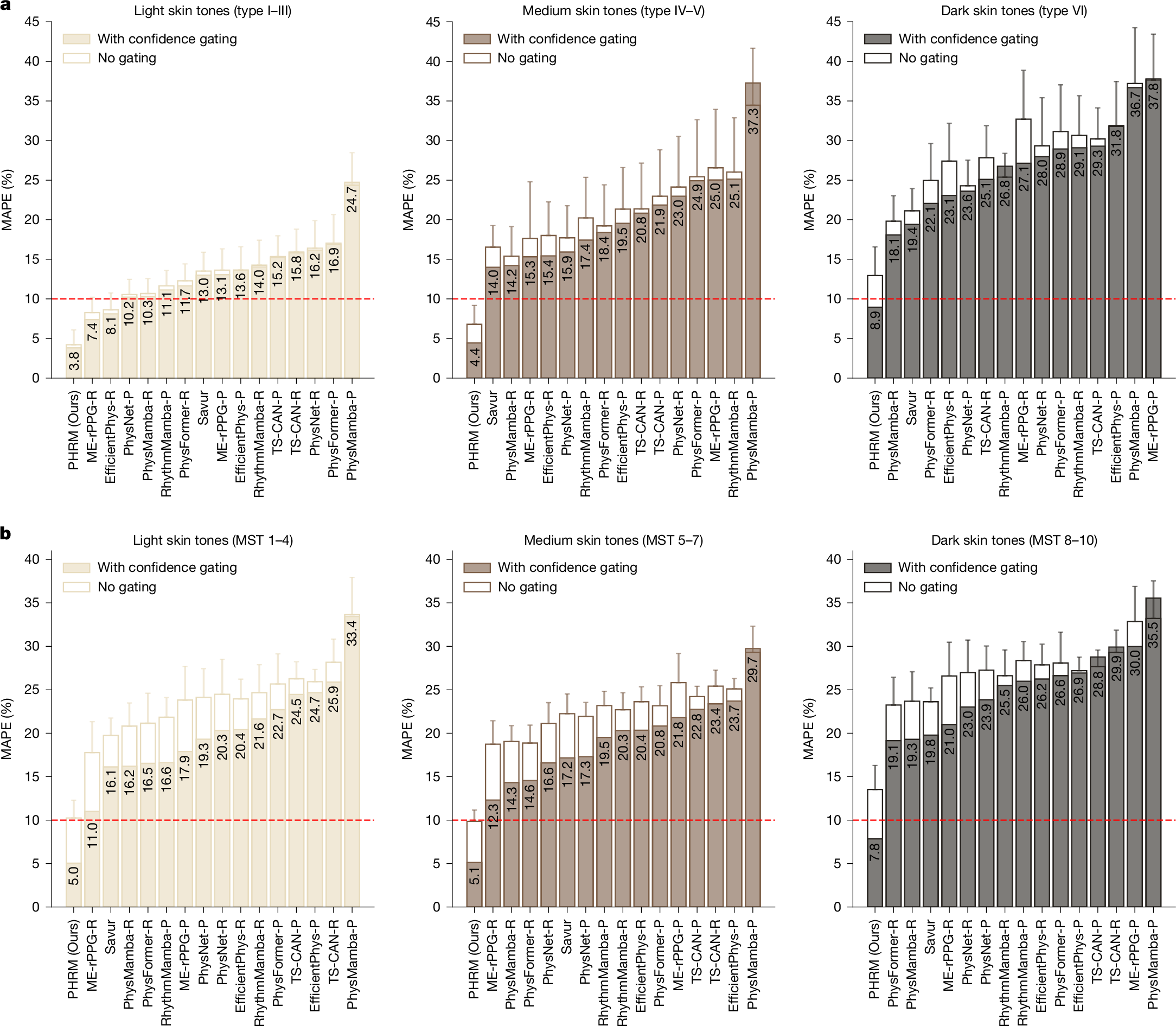

Fig. 3: Comparison of PHRM and state-of-the-art rPPG methods on our HR test benchmarks.

From: Passive heart-rate monitoring during smartphone use in everyday life

Fig. 3: Comparison of PHRM and state-of-the-art rPPG methods on our HR test benchmarks.The alternative text for this image may have been generated using AI.

a,b, MAPE values at the participant level of PHRM and 15 baselines by skin-tone group in diverse laboratory (a; n = 44, 25 and 35 participants in the light, medium and dark skin-tone groups, respectively) and free-living (b; n = 39, 29 and 39 participants in the light, medium and dark skin-tone groups, respectively) conditions. Deep-learning baseline models were trained on the PURE (ending with -P) and RLAP (ending with -R) datasets. Filled bars indicate MAPE on valid HR measurements after gating on the confidence scores associated with the PHRM predictions; empty bars indicate MAPE on all videos without any gating. Red dashed lines indicate the prespecified accuracy target of MAPE <10% according to the ANSI/CTA-2065 standard. Error bars are upper 95% CIs.
