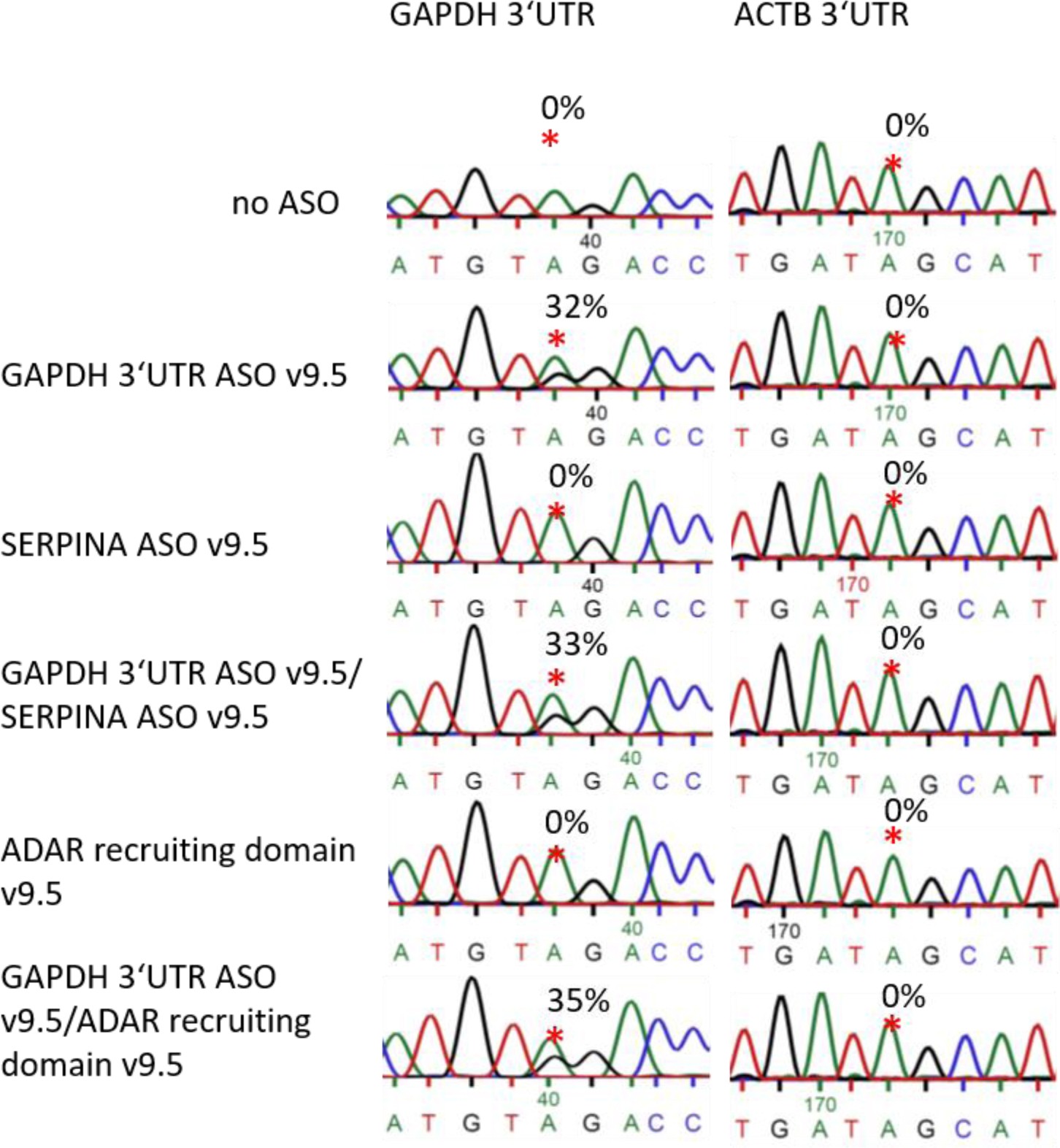

Supplementary Figure 7: Effect of cotransfection of a nontargeting ASO v9.5 or the chemically stabilized ADAR-recruiting domain v9.5 alone on the GAPDH 3′-UTR editing with ASO v9.5, but for the recruitment of endogenous ADAR in HeLa cells without IFN-α.
From: Precise RNA editing by recruiting endogenous ADARs with antisense oligonucleotides
This control experiment is the exact copy of the expriment shown in the preceding Supplementary Figure but was carried out in HeLa cells, recruiting endogenous ADAR. Exactly the same results have been observed and the same conclusions can be drawn.
