Supplementary Figure 4: SWEET mRNA levels in uninfected rice leaves.

From: Diagnostic kit for rice blight resistance

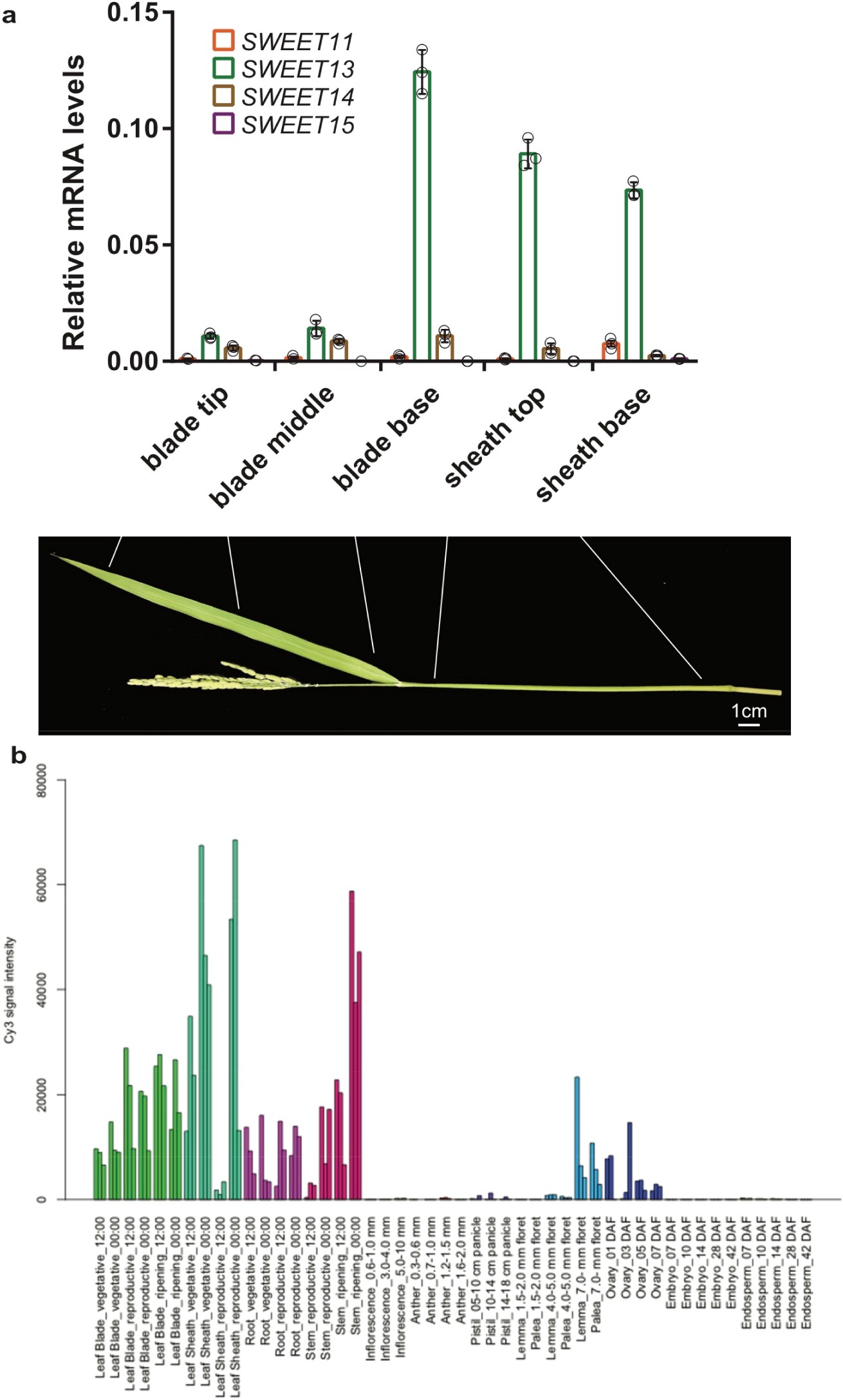

Supplementary Figure 4

a, Relative mRNA levels (qRT-PCR) of SWEET11, SWEET13, SWEET14 and SWEET15 in different regions of rice flag leaves. Samples were harvested at 12 pm (mean ± s.e.m., n = 3 leaf samples from siblings grown in parallel) with expression normalized to rice Ubiquitin1 levels. This experiment was repeated independently three times with similar results). b, Tissue-specific expression pattern of SWEET13 from public microarray data (http://ricexpro.dna.affrc.go.jp).
