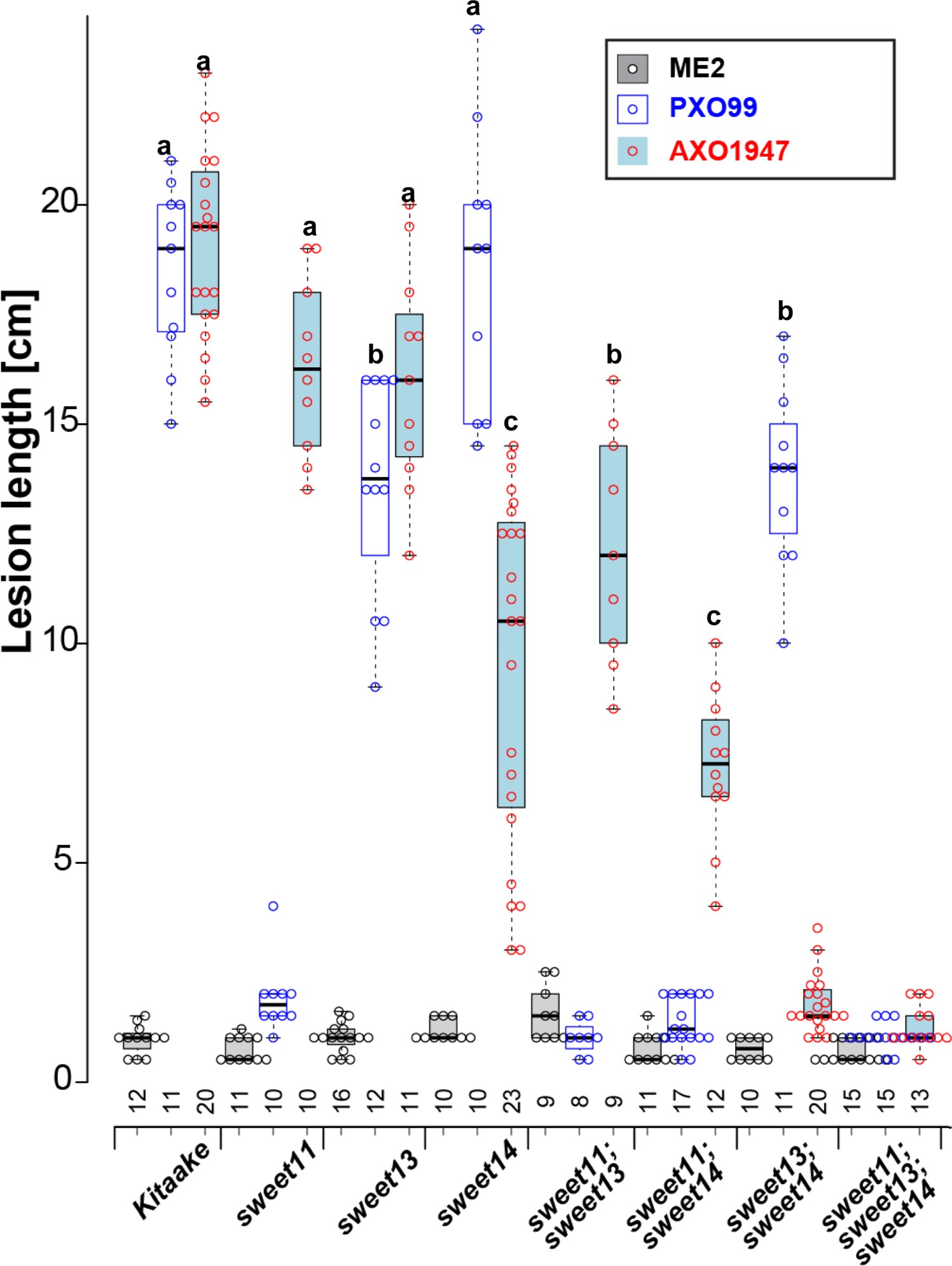

Supplementary Figure 14: SWEETko knock-out mutants as diagnostic tools.
Lesion length caused by ME2 (negative control, black circles, grey box outline), PXO99 (positive control, blue circles, blue box outline) and the African strain AXO1947 (red circles, faint blue boxes) on single, double and triple (sweet11, sweet13 and sweet14) knock-out mutants relative to Kitaake wild type. Lesion lengths measured at 14 DAI were plotted using BoxPlotR (http://shiny.chemgrid.org/boxplotr/). Center lines show medians; box limits indicate the 25th and 75th percentiles as determined by R software; whiskers extend 1.5 times the interquartile range from the 25th and 75th percentiles; and data points are plotted as open circles. Number of tests n is indicated below each box on the x-axis (numbers between 8 and 23). The same lower letters above the graph bars indicate no significant different at P < 0.05 by one-way ANOVA.
