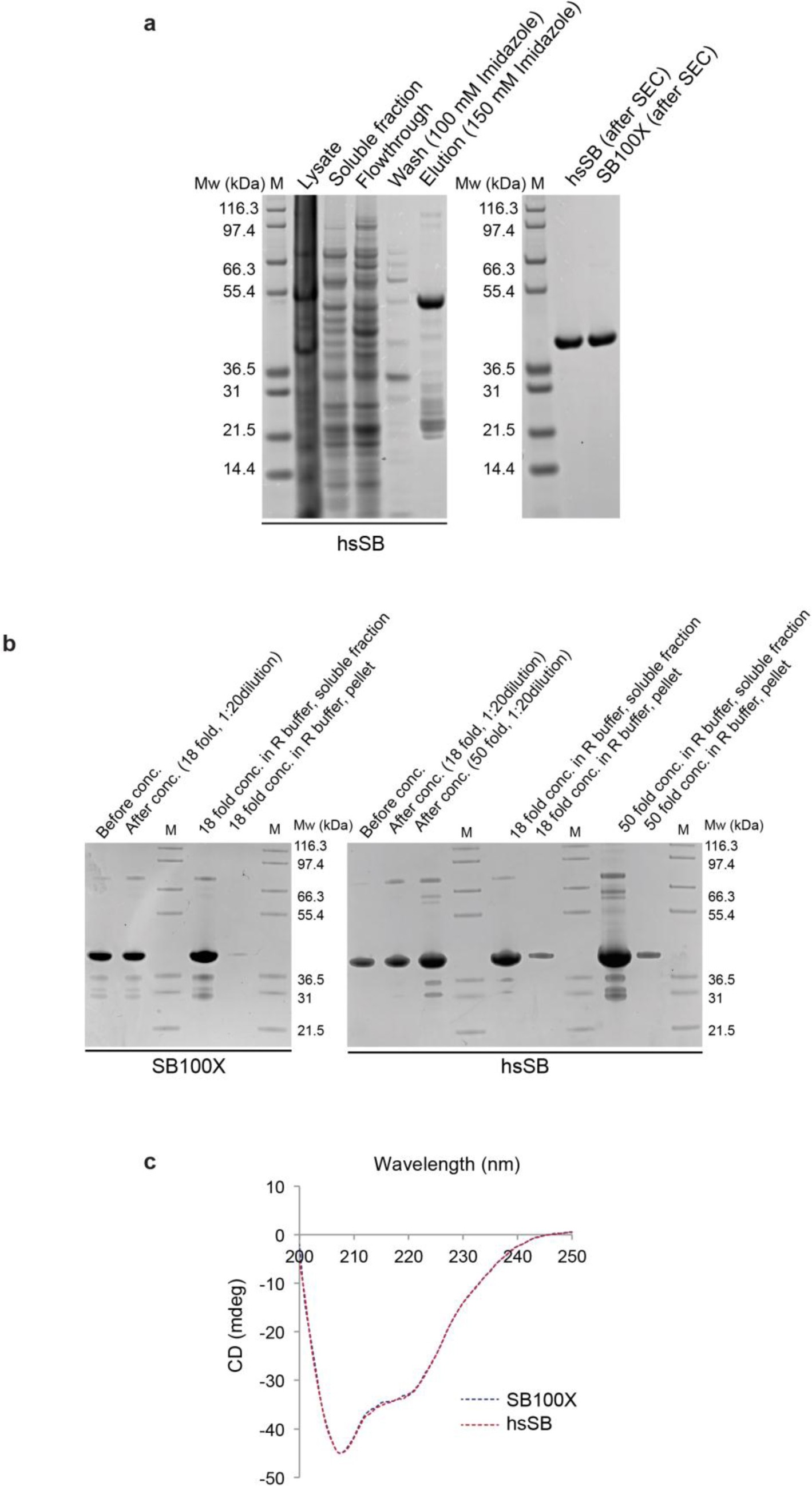

Supplementary Figure 1: Biochemical characterization of the hsSB transposase.
From: A highly soluble Sleeping Beauty transposase improves control of gene insertion
a, SDS-PAGE analysis of samples collected during recombinant production and purification of the hsSB transposase variant. hsSB was produced in E. coli (fused to N-terminal purification and solubility tags) at high yields and was highly pure (>95%) after tag removal and size exclusion chromatography. b, SDS-PAGE analysis of purified SB proteins after concentration (conc.). hsSB can be concentrated up to 50 fold (corresponding to 20 mg per ml), whereas SB100X undergoes precipitation at concentrations higher than 7 mg per ml. The vast majority of hsSB remains in the soluble fraction in the low-salt R buffer used for electroporation, even at high protein concentration. c, CD spectra of the SB100X (blue curve) and hsSB (red curve) proteins. a–c, Experiments were repeated independently two b and three a,c times with similar results.
