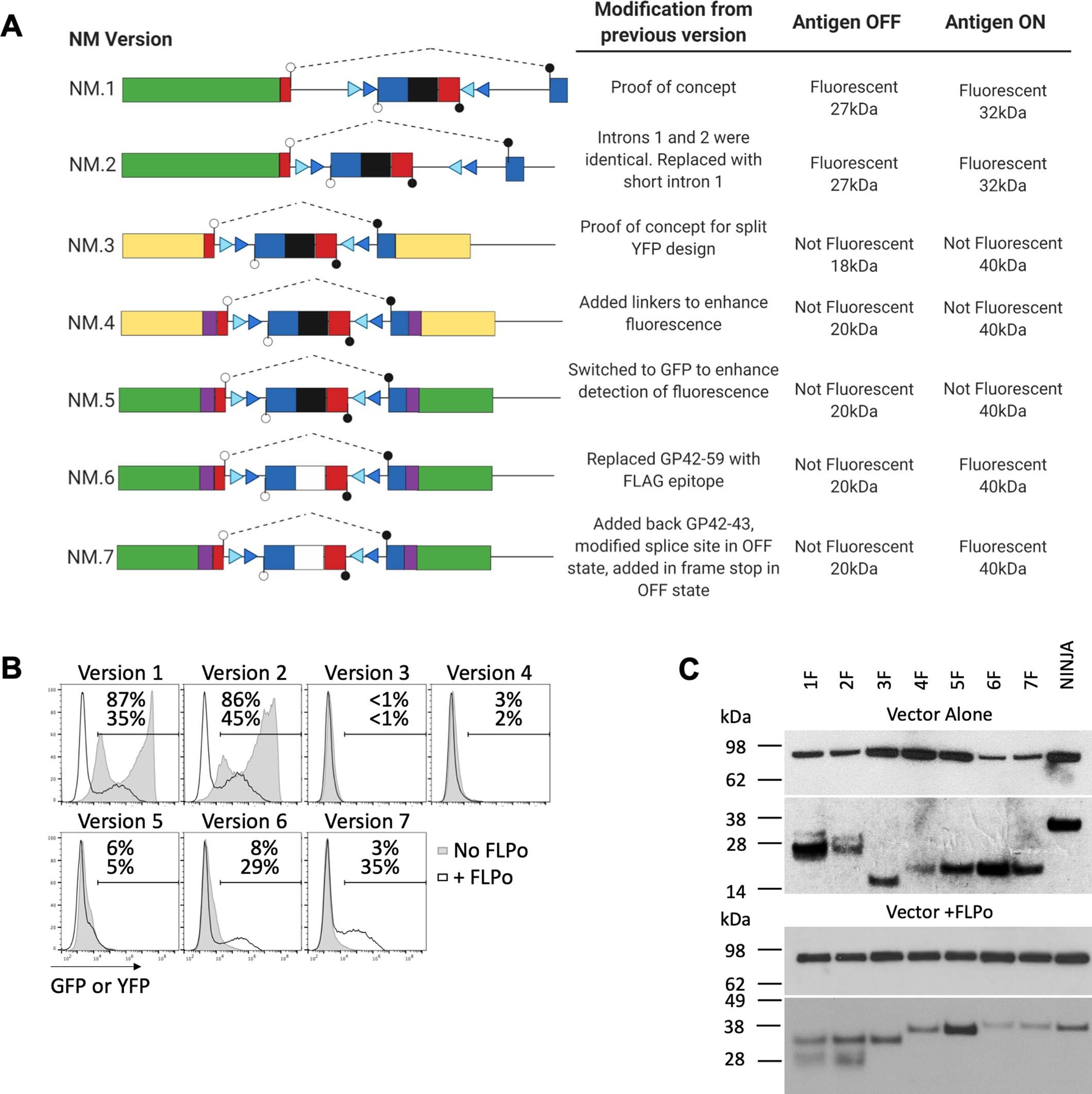

Extended Data Fig. 2: Development of advanced versions of NM.
From: Inducible de novo expression of neoantigens in tumor cells and mice
a, Schematic shows 7 versions of the NM, with modifications made at each step and the fluorescence status at either ON or OFF state. b, Flow cytometry histograms of GFP or YFP fluorescence in each version, with or without FLPo activation. Representative of 3 independent experiments. c, Western blotting for GRP94 (control, top panel) or N-terminal GFP (bottom panel) on lysates from 293T cells transiently transfected with each version of NM, with (top blot) or without (bottom blot) FLPo. Positive control (+) is cell lysate from KP-C4A3D6 after FLPo. Representative of 3 independent experiments.
