Extended Data Fig. 2: Design of bioresorbable, implantable, leadless, battery-free cardiac pacemaker.
From: Fully implantable and bioresorbable cardiac pacemakers without leads or batteries

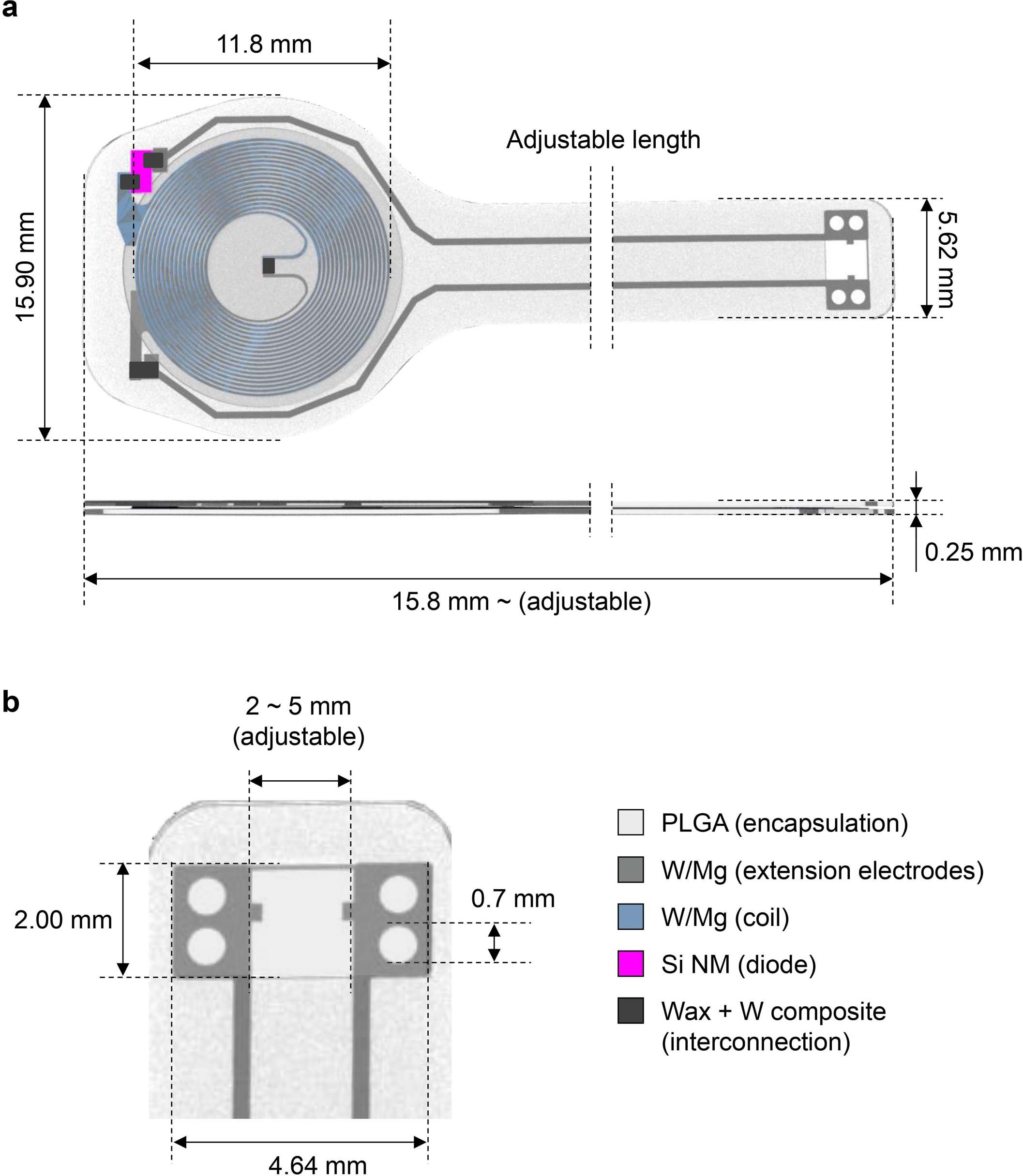

a, Dimensions of the device: (top) x,y-view; (bottom) x,z-view. The minimum length of the device is 15.8 mm. The total length can be altered to meet requirements for the target application, simply by changing the length of the extension electrode. b, Dimensions of the contact pad. PLGA encapsulation covers the top surface of the contact electrode to leave only the bottom of contact electrode exposed.
