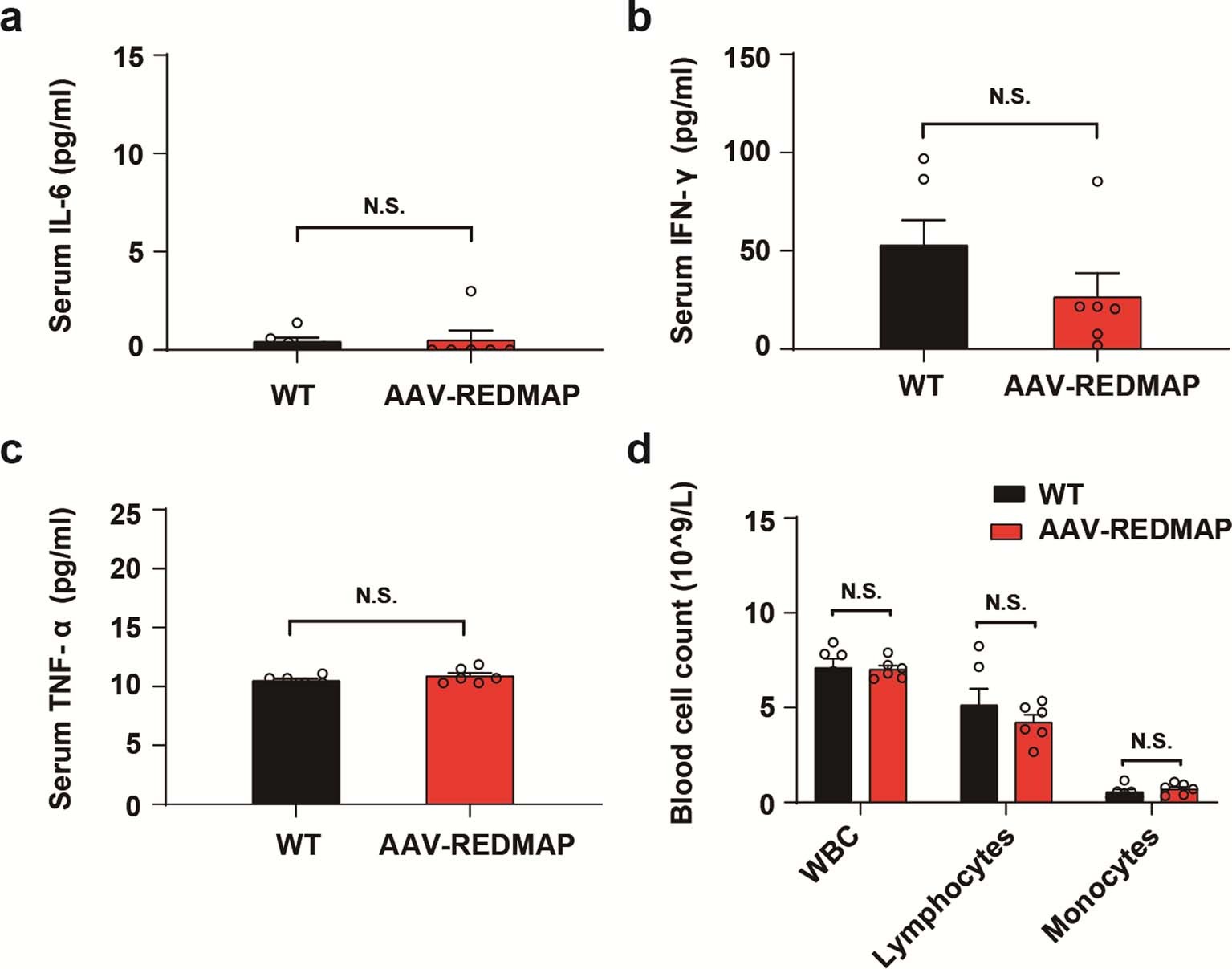

Extended Data Fig. 8: Serum inflammatory cytokine and whole blood analysis of AAV REDMAP mice.
From: A small and highly sensitive red/far-red optogenetic switch for applications in mammals
Mice were injected via tail vein with AAV encoding the REDMAP system. Control mice were injected with PBS. Twelve weeks after injection, mouse blood was collected for the quantification of (a) serum IL-6, (b) serum IFN-γ, and (c) serum TNF-α production by ELISA. d Counts for total white blood cells (WBC), blood lymphocytes, and blood monocytes, in mice. Data are expressed as means ± SEM (n = 6 mice). P values were calculated by two-tailed unpaired t test. N.S., not significant.
