Extended Data Fig. 9: Analysis of PIP-seq data from MPAL Patient 65.

From: Microfluidics-free single-cell genomics with templated emulsification

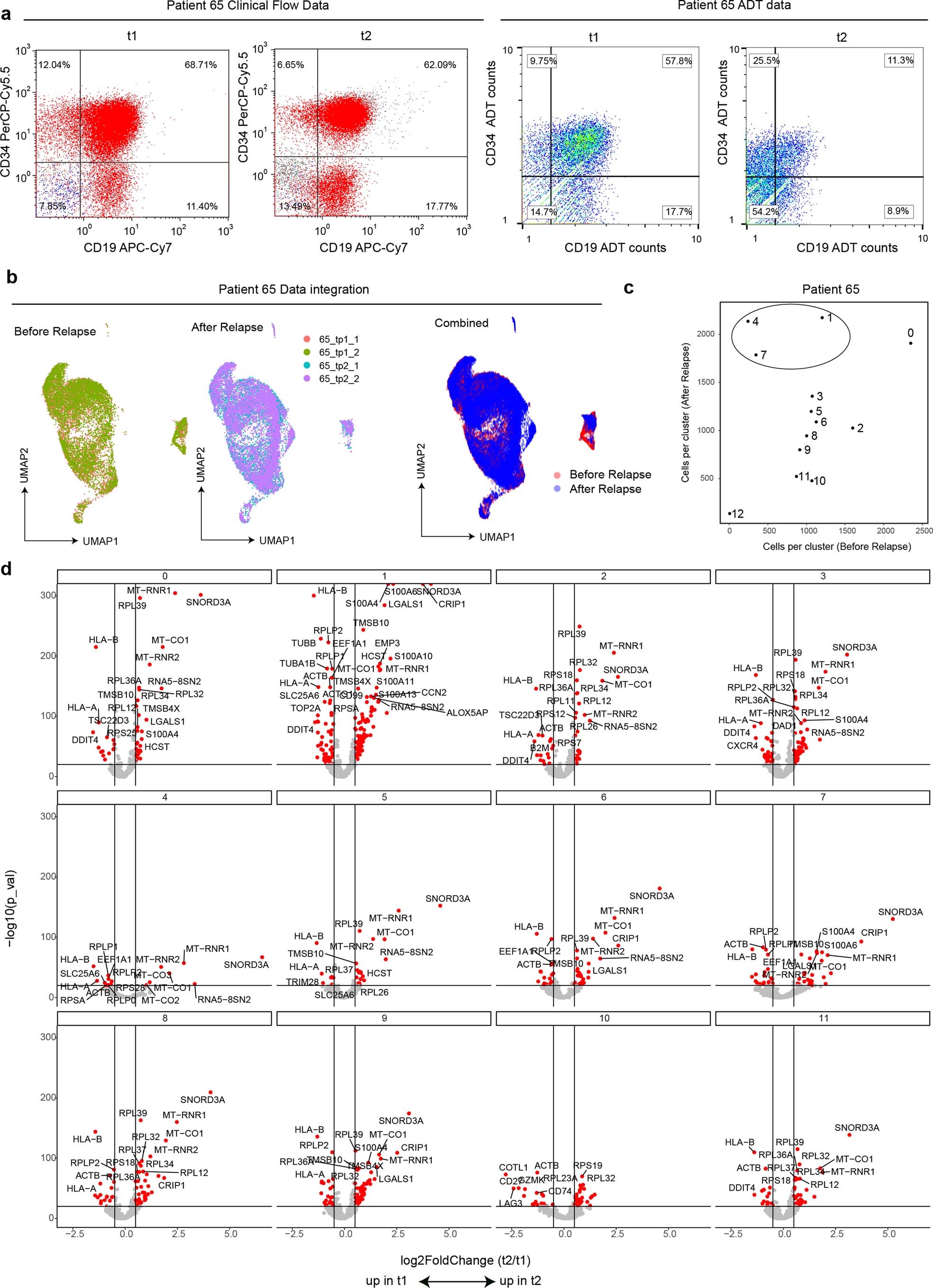

Extended Data Fig. 9: Analysis of PIP-seq data from MPAL Patient 65.The alternative text for this image may have been generated using AI.

(a) Clinical flow cytometry and corresponding antibody derived tag (ADT) data for patient 65 with mixed phenotypical acute leukemia (MPAL). (b) Integration of replicates and time points. (c) Correlation between the number of cells in each cluster before and after relapse identifies expansion of clusters 1,4, and7. (d) Volcano plots showing differential gene expression, by cluster, between t1 (before treatment) and t2 (after relapse).
