Extended Data Fig. 9: Affinity dependent binding of transcription factor target genes.

From: Quantification of absolute transcription factor binding affinities in the native chromatin context using BANC-seq

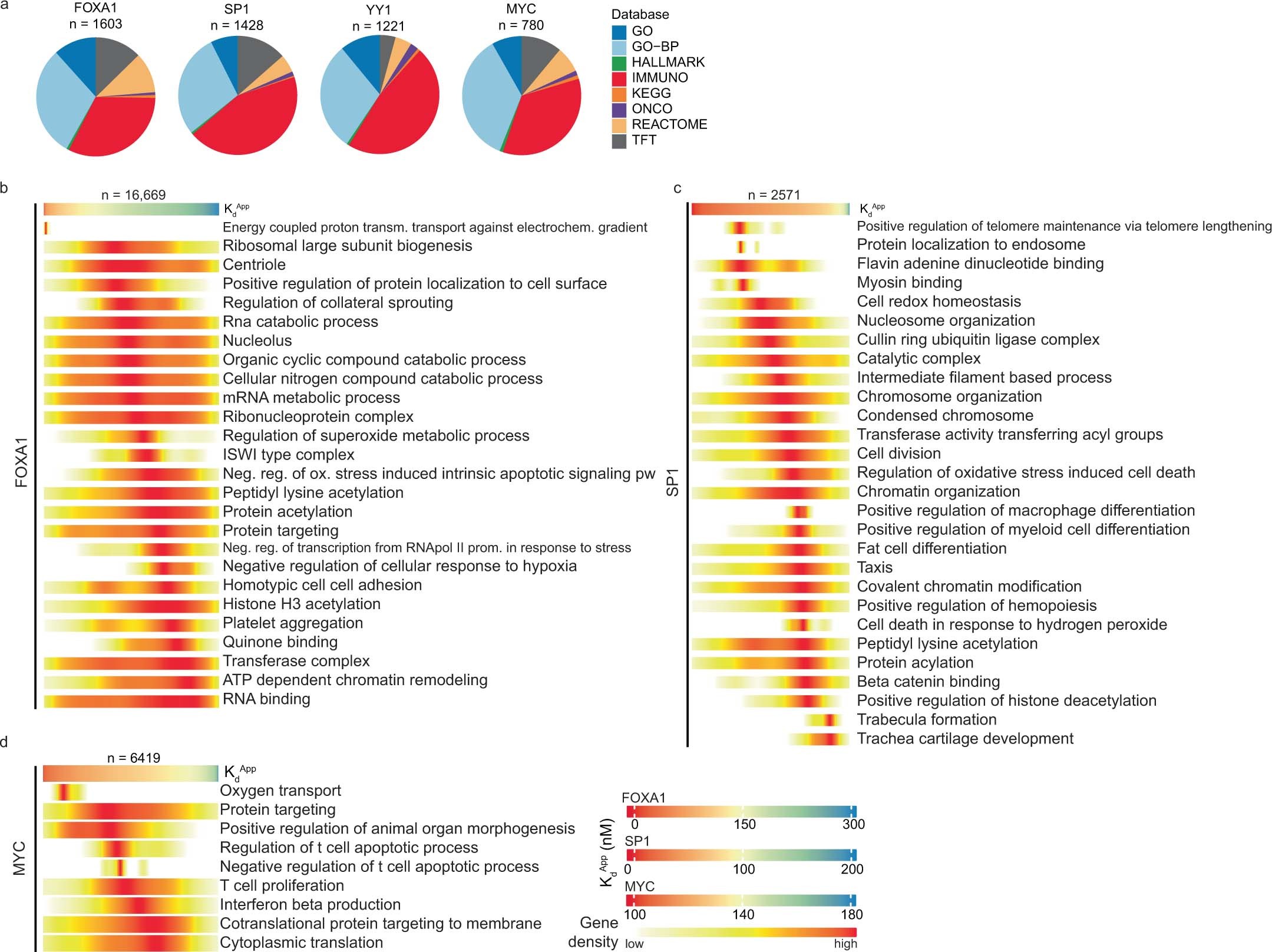

Extended Data Fig. 9: Affinity dependent binding of transcription factor target genes.The alt text for this image may have been generated using AI.

(a) Pie charts representing the proportions of significantly enriched gene sets (FDR < 0.05) per Molecular Signatures Database collection for the different transcription factors. (b-d) Heatmaps representing enrichment of genes from various gene sets over the range of \(K_d^{Apps}\) for SP1, FOXA1 and MYC/MAX complex in MCF-7. Sites are ranked by \(K_d^{Apps}\) (top heatmap per experiment) and gaussian kernel density estimates of the density of highly significant gene sets (FDR < 0.001) over the ranked \(K_d^{Apps}\) values are visualized to show that some gene sets are enriched at certain transcription factor \(K_d^{Apps}\).
