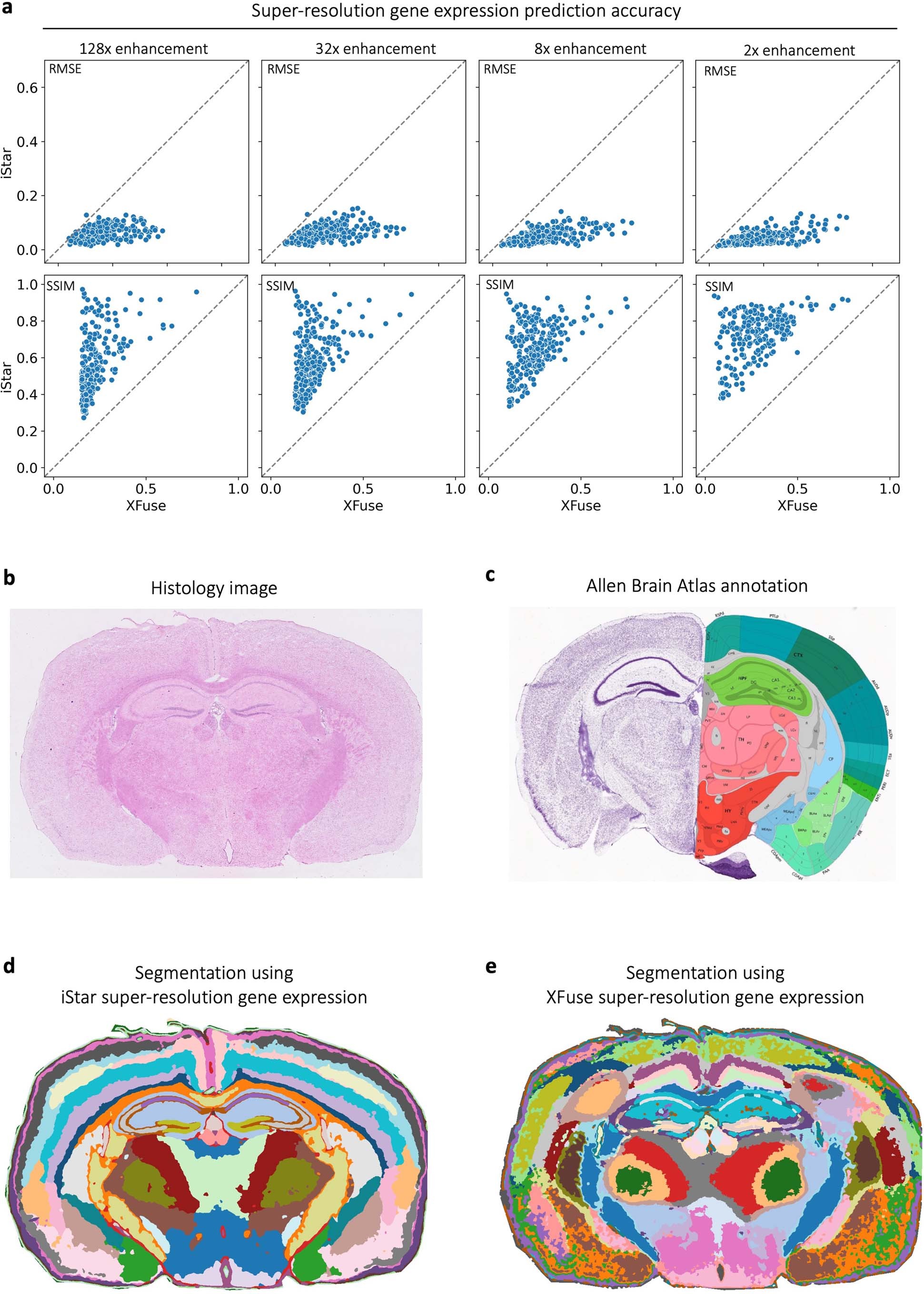

Extended Data Fig. 8: Prediction accuracy evaluation and gene-based segmentation comparison in the Xenium-derived pseudo-Visium mouse brain data.
From: Inferring super-resolution tissue architecture by integrating spatial transcriptomics with histology
a. Prediction accuracy of by iStar and XFuse as measured by root mean squared error (RMSE) and structural similarity index measure (SSIM) for all the 248 genes in the Xenium-derived pseudo-Visium data obtained from mouse brain. In each scatter plot, a dot represents one gene. b. Segmentation of the Xenium-derived pseudo-Visium data obtained from mouse brain by iStar and XFuse using all 248 genes available in this dataset. Super-resolution was performed with 128x resolution enhancement.
